Product Name:

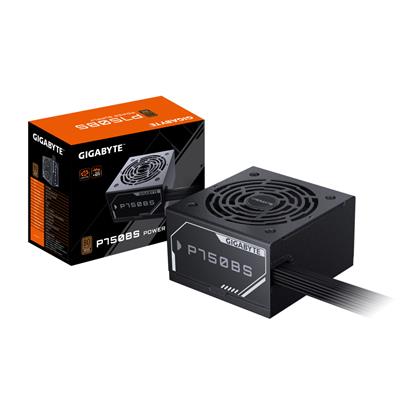

Gigabyte 750W ATX 12V Standard Power Supply - P750BS - 80 PLUS Bronze

Web Address:

www.gigabyte.com

Model Number:

GP-P750BS-UK

EAN:

4793311555252

UPC:

810162141578

Package Type:

Retail

Warranty:

3 Years

Maximum Power:

750W

20+4-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

4

SATA Connector(s):

7

Peripheral Connector(s):

1

PFC:

Active

AC Input:

100-240VAC

Hold-up Time:

16ms

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

M.T.B.F.:

100,000 hours

Colour:

Black

Cable Type:

Standard

Cable Sleeving:

• Embossed
• All black

Cooling System:

1 x 120mm Fan (FDB)

Product Width:

150mm

Product Length:

140mm

Product Height:

86mm

Package Width:

20.5cm

Package Length:

25.5cm

Package Height:

12cm

Gross Weight:

2.01Kg

Special Features:

• 80 PLUS Bronze certified (230V EU)
• 120mm Silent Fluid Dynamic Bearing (FDB) fan
• Soft-textured embossed cables
• Single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection

Package Contents:

• Power Supply
• UK Power Cord

Keywords:

• PSU
• Power Supply
• Bronze
• OVP
• OPP
• SCP
• UVP
• OCP
• OTP
