Product Name:

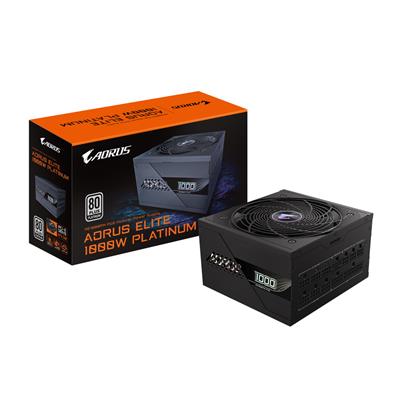

Aorus Elite 1000W ATX 12V v3.0 Fully Modular Power Supply - P1000W - 80 PLUS Platinum

Web Address:

www.gigabyte.com

Model Number:

GP-AE1000PM PG5

EAN:

4719331554569

UPC:

810162140076

Package Type:

Retail

Warranty:

10 Years

Type:

ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)

Maximum Power:

1000W

20+4-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

6

16-pin PCI-E:

1

SATA Connector(s):

8

Peripheral Connector(s):

4

PFC:

Active

AC Input:

100-240VAC

Hold-up Time:

16ms

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

M.T.B.F.:

100,000 hours

Colour:

Black

Cable Type:

Fully Modular

Cable Sleeving:

• Flat
• All white

Cooling System:

1 x 120mm (FDB)

Product Width:

150mm

Product Length:

140mm

Product Height:

86mm

Package Width:

20cm

Package Length:

34cm

Package Height:

12cm

Gross Weight:

3.56Kg

Special Features:

• ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1).
• 80 PLUS Platinum certified.
• 100% Japanese capacitors.
• 120mm smart Fluid Dynamic Bearing (FDB) fan.
• Compact design.
• Fully modular design.
• Powerful single +12V rail.
• OVP/OPP/SCP/UVP/OCP/OTP protection.

Package Contents:

• Power Supply
• UK Power Cord
• Mounting Screws
• Cable Set

Keywords:

• PSU
• Power Supply
• v3.0
• PCIe 5.0
• Platinum
