Product Name:

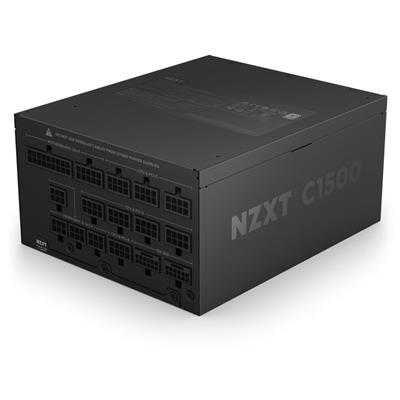

+NEW+NZXT 1500W ATX Fully Modular Power Supply - C1500- 80 PLUS Platinum

Web Address:

nzxt.com

Model Number:

PA-5P1BB-UK

EAN:

5056547203669

Package Type:

Retail

Warranty:

10 Years

Type:

ATX 12V v3.1

Maximum Power:

1500W

24-pin Main:

1

4+4-pin ATX/EPS:

1

8-pin EPS:

1

6+2-pin PCI-E:

6

12+4-pin PCI-E:

2

SATA Connector(s):

12

Peripheral Connector(s):

4

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

Operating Temperature:

0°C to 50°C

M.T.B.F.:

100,000 hours

Colour:

Black

Cable Type:

Fully Modular

Cable Length:

• 24-pin ATX Power Cable: 600mm
• 4+4-pin CPU Power Cable: 700mm
• 8-pin CPU Power Cable: 700mm
• 6+2-pin PCIe Power Cable: 650mm
• 16-pin (12+4) 12V-2x6 PCIe Cable: 650mm
• SATA Cable: 500 + 150mm
• Peripherals Cable: 500 + 150mm

Cable Sleeving:

Nylon

Cooling System:

1 x 140mm Fan (Sleeve Bearing)

Noise:

41 dBA max

Product Width:

150mm

Product Length:

180mm

Product Height:

86mm

Special Features:

• Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
• Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.
• Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
• Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
• Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.
• 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
• Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.
• Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
• Compact 180mm form factor optimizes valuable case space while promoting improved airflow.

Package Contents:

• C1500 Platinum ATX 3.1 PSU
• UK Power Cord
• Cable Set
• Mounting Screws
