Product Name:

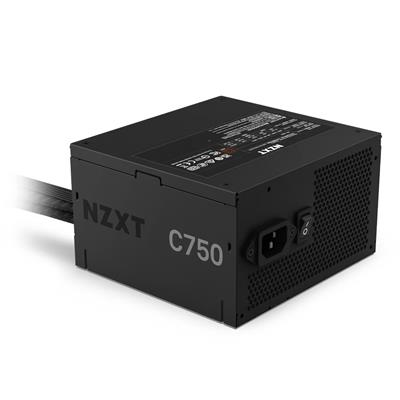

+NEW+NZXT 750W ATX Standard Power Supply - C750 - 80 PLUS Bronze

Web Address:

nzxt.com

Model Number:

PA-7B2BB-UK

EAN:

5056547203607

Package Type:

Retail

Warranty:

3 Years

Type:

ATX 12V v2.53

Maximum Power:

750W

24-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

2

SATA Connector(s):

4

Peripheral Connector(s):

4

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

Operating Temperature:

0°C to 40°C

M.T.B.F.:

100,000 hours

Colour:

Black

Cable Type:

Standard

Cable Length:

• 24-pin ATX Power: 600mm
• 4+4-pin CPU Power: 700mm
• 6+2-pin PCIe Power: 650 + 150mm
• SATA Power: 500 + 150mm
• Peripherals: 500 + 150mm

Cable Sleeving:

Nylon

Cooling System:

1 x 120mm Fan (FDB)

Noise:

39.92 dBA max

Product Width:

150mm

Product Length:

140mm

Product Height:

86mm

Special Features:

• Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.
• A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
• DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
• Tested for safety at up to 40°C and features over-temperature and over-current protections.
• Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.

Package Contents:

• NZXT C750 Bronze PSU
• UK Power Cord
• Mounting Screws

Keywords:

• PSU
• 750W
• ATX
• Bronze
• Standard
