Product Name:

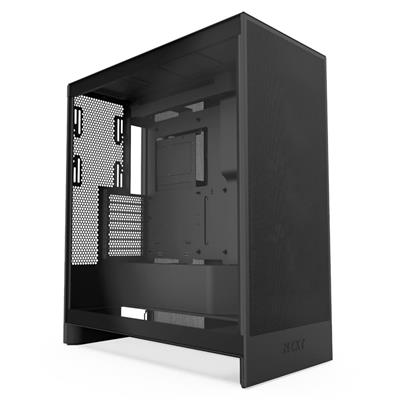

+NEW+NZXT H7 Flow Mid Tower Case Black (E-ATX/ATX/M-ATX/M-ITX)

Web Address:

nzxt.com

Model Number:

CM-H72FB-01

EAN:

5056547205502

Package Type:

Retail

Warranty:

2 Years

Case Type:

Mid Tower

Colour:

Black

Material Chassis:

SGCC Steel

Side Panel:

Tempered Glass

Front USB 3.1 Port(s) Type-A:

2

Front USB 3.2 Gen 2x2 Port(s) Type-C:

1

Front Headphone Jack(s):

1

Expansion Slots:

7

Motherboard Support:

Mini ITX / Micro ATX / ATX / E-ATX

Drive Bays Internal 3.5":

2

Drive Bays Internal 2.5":

2+2

Pre-installed Fan(s) Front:

3 x F120Q Fan

Radiator Support:

• Front: Up to 420mm
• Top: Up to 360mm
• Rear: Up to 140mm

Fan Support:

• Front: 3 x 120mm / 3 x 140mm
• Top: 3 x 120mm / 2 x 140mm
• Rear: 1 x 120mm / 1 x 140mm
• Bottom: 3 x 120mm

Clearances:

• CPU Cooler Height: Up to 185mm
• GPU Length: Up to 410mm
• PSU Length: Up to 200mm
• Cable Management: Up to 34.5mm
• Top Mounted 140mm / 280mm Radiator and Fan Combined Thickness:Up to 57 mm

Dust Filter(s):

High-Performance Mesh

Product Width:

244mm

Product Length:

468mm

Product Height:

544mm

Product Weight:

11130g

Special Features:

• Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
• Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
• High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
• Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
• Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
• Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
• Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
• Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Package Contents:

• H7 Flow
• 3 x F120Q Airflow Fan (pre-installed, case version)
• Installation Accessories
• Manual

Keywords:

• Case
• Mid
• E-ATX
• ATX
• Micro-ATX
• Mini-ITX
