Product Name:

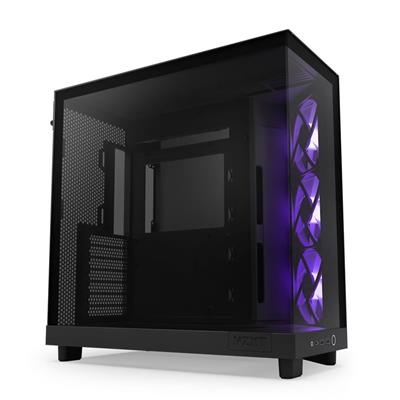

+NEW+NZXT H6 Flow RGB Mid Tower Case Black (ATX/M-ATX/M-ITX)

Web Address:

nzxt.com

Model Number:

CC-H61FB-R1

EAN:

5056547204079

Package Type:

Retail

Warranty:

2 Years

Case Type:

Mid Tower

Colour:

Black

Material Chassis:

SGCC Steel

Side Panel:

Tempered Glass

Front USB 3.2 Gen 1 Port(s) Type-A:

2

Front USB 3.2 Gen 2x2 Port(s) Type-C:

1

Front Headphone Jack(s):

1

Expansion Slots:

7

Motherboard Support:

Mini ITX / Micro ATX / ATX

Drive Bays Internal 3.5":

1

Drive Bays Internal 2.5":

2

Pre-installed Fan(s) Front:

3 x F120 RGB Fan

Radiator Support:

• Top: Up to 360mm
• Rear: Up to 120mm

Fan Support:

• Front-Right: 3 x 120mm
• Top: 3 x 120mm / 2 x 140mm
• Bottom: 2 x 140mm
• Rear: 1 x 120mm

Clearances:

• CPU Cooler Height: 163mm
• GPU Length: 365mm
• PSU Length: 200mm
• Cable Management: 91mm
• Top Radiator: 30mm

Dust Filter(s):

High-Performance Mesh

Product Width:

287mm

Product Length:

415mm

Product Height:

435mm

Product Weight:

9400g

Special Features:

• Experience peak performance and vibrant RGB within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
• Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
• Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
• Includes three pre-installed 120mm RGB fans (Case Version) positioned at an ideal angle for optimal out-of-the-box cooling and vibrant RGB lighting.
• The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
• An intuitive cable management system simplifies the build process by using wide channels and straps.
• Tool-free access to the top and side panels makes upgrading quick and convenient.
• Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance.

Package Contents:

• H6 Flow RGB
• 3 x F120 RGB Core
• Installation Accessories
• User Guide

Keywords:

• Case
• Mid
• ATX
• Micro-ATX
• Mini-ITX
