Product Name:

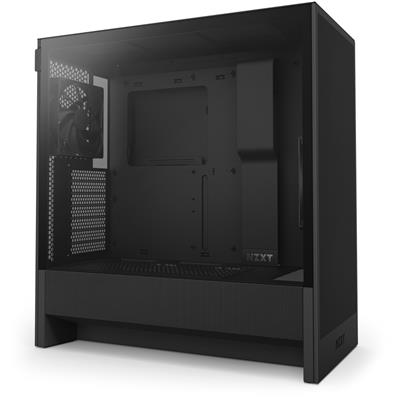

+NEW+NZXT H5 Flow Mid Tower Case Black (E-ATX/ATX/M-ATX/M-ITX)

Web Address:

nzxt.com

Model Number:

CC-H52FB-01

EAN:

5056547205854

Package Type:

Retail

Warranty:

2 Years

Case Type:

Mid Tower

Colour:

Black

Material Chassis:

SGCC Steel

Side Panel:

Tempered Glass

Front USB 3.2 Gen 1 Port(s) Type-A:

1

Front USB 3.2 Gen 2x2 Port(s) Type-C:

1

Front Headphone Jack(s):

1

Motherboard Support:

Mini ITX / Micro ATX / ATX / E-ATX

Drive Bays Internal 3.5":

1

Drive Bays Internal 2.5":

2

Pre-installed Fan(s) Front:

1 x F120Q

Pre-installed Fan(s) Rear:

1 x F120Q

Radiator Support:

• Front: Up to 360mm
• Top: Up to 240 mm (280mm with low-profile memory only)

Fan Support:

• Front: 3 x 120mm / 2 x 140mm
• Top: 2 x 120mm / 2 x 140mm
• Bottom: 2 x 120mm
• Rear: 1 x 120mm

Clearances:

• CPU Cooler Height: Up to 170mm
• GPU Length: Up to 410mm
• PSU Length: Up to 200 mm
• Cable Management: Up to 28.7mm
• Top Radiator: Up to 240mm (280 mm with low-profile memory)
• Top Mounted 140mm / 280mm Radiator and Fan Combined Thickness:Up to 55mm

Product Width:

225mm

Product Length:

430mm

Product Height:

465mm

Product Weight:

7280Kg

Special Features:

• The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support - all in a compact mid-tower form factor.
• The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
• Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
• Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
• Equipped with two 120mm Quiet Airflow fans (CV) - one in front, one in rear - for solid out-of-the-box performance.
• Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Package Contents:

• H5 Flow Case
• 2 x F120Q Fans
• Installation Accessories
• User Guide

Keywords:

• Case
• Mid-Tower
• E-ATX
• ATX
• Micro-ATX
• Mini-ITX
