Product Name:

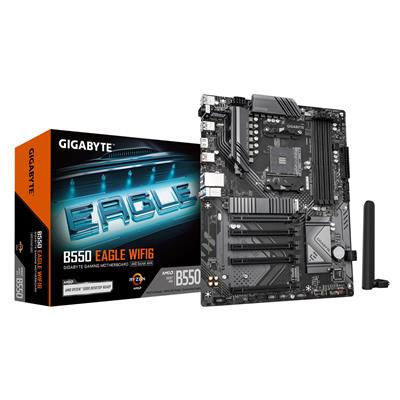

Gigabyte B550 EAGLE WIFI6 (Socket AM4/B550/DDR4/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

B550 EAGLE WIFI6

EAN:

4719331868406

UPC:

889523047262

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

https://www.gigabyte.com/Motherboard/B550-EAGLE-WIFI6/support#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 3200 (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

4

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 3.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

On-Board LAN:

Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Wireless NIC:

Wi-Fi 6

Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

Bluetooth:

v5.3

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

2

Back USB 3.2 Port(s) Type-C Gen 1:

1

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

2 x antenna connectors (1T1R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 2 x Addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

33cm

Package Height:

8cm

Gross Weight:

1.27Kg

Special Features:

• AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors.
• Digital twin 10+3+1 phases VRM solution.
• Dual Channel DDR4: 4 x DIMMs with AMD EXPO Memory Module Support.
• EZ-Latch: PCIe slots with Quick Release Design.
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage: 2 x M.2 slots, including PCIe 4.0 x1.
• Efficient Thermal: VRM Thermal Armor Advanced.
• Fast Networking: GbE LAN and Wi-Fi 6.
• Extended Connectivity: HDMI, Displayport.
• PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card and Better Heat dissipation effect.

Package Contents:

• Motherboard
• Manual
• Quick Installation Guide
• I/O Shield
• One antenna
• 2 x SATA cables
• M.2 screws
• One pack of M.2 thick/thin rubber pads
