Product Name:

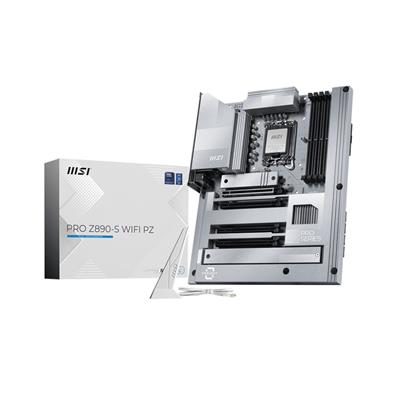

MSI PRO Z890-S WIFI PZ (Socket 1851/Z890/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

PRO Z890-S WIFI PZ

EAN:

4711377288996

UPC:

824142394205

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel Z890

CPU Interface:

Socket 1851

CPU Support:

https://www.msi.com/Motherboard/PRO-Z890-S-WIFI-PZ/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8800 (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

2

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 8125D 2.5Gbps LAN

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back USB 5Gbps Port(s) Type-A:

6

Back USB 20Gbps Port(s) Type-C:

1

Back Thunderbolt 4 Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

Wi-Fi / Bluetooth

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

2

USB 20Gbps Header(s):

1

Thunderbolt Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Tuning Controller connector
• 3 x Addressable V2 RGB LED connector
• 1 x RGB LED connector
• 4 x EZ Debug LED

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

28.3cm

Package Length:

34.7cm

Package Height:

7.8cm

Gross Weight:

1.93Kg

Special Features:

• Back-Connect Design: Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable management.
• Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
• Thunderbolt 4 port: Thunderbolt 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
• Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
• Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
• 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
• Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
• M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
• Frozr AI Cooling: Detect CPU and GPU temperatures and automatically adjust system fan duty to a proper value.

Package Contents:

• Motherboard
• Quick Installation Guide
• EZ M.2 Clip II Remover
• 3 x EZ M.2 Clip II
• EZ Wi-Fi Antenna
• 2 x SATA Cable
• 1 to 2 EZ Conn-Cable
