Product Name:

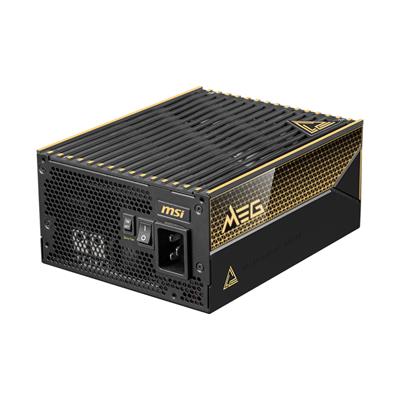

MSI 1600W ATX 3.1 Fully Modular Power Supply - MEG AI1600T PCIE5 - (Active PFC/80 PLUS Titanium)

Web Address:

uk.msi.com

Model Number:

MEG AI1600T PCIE5

EAN:

4711377238847

UPC:

824142374818

Package Type:

Retail

Warranty:

10 Years

Type:

ATX 12V v3.1

Maximum Power:

1600W

24-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

9

16-pin PCI-E:

2

SATA Connector(s):

8

Peripheral Connector(s):

8

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

M.T.B.F.:

150,000 hours

Colour:

Black

Cable Type:

Fully Modular

Cooling System:

1 x 135mm Fan (Double Ball Bearing)

Product Width:

150mm

Product Length:

190mm

Product Height:

86mm

Package Width:

24.5cm

Package Length:

38.5cm

Package Height:

15cm

Gross Weight:

6.05Kg

Special Features:

• Supports Nvidia GeForce RTXTM 50 Series graphics cards.
• Dual-native 12V-2x6 Connectors.
• Server-grade materials, SiC interleaved PFC MOSFET.
• Tri-certified Titanium certification (80 PLUS / Cybenetics / PPLP).
• PCIe 5.1 and ATX 3.1 Ready.
• Dual-colour 12V-2x6 cables.
• 100% all Japanese 105°C capacitor.
• Full digital design with control MCU.
• Industrial level protection with OCP/OTP/OPP/SCP/OVP/UVP/SIP/NLO.

Package Contents:

• Power Supply Units
• Cable Set
• UK Power Lead
