Product Name:

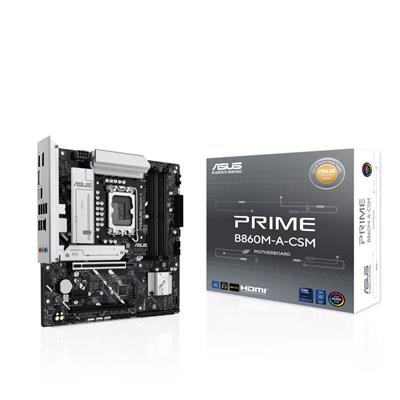

ASUS PRIME B860M-A-CSM (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRIME B860M-A-CSM

EAN:

4711387819869

UPC:

197105819863

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Chipset:

Intel B860

CPU Interface:

Socket 1851

CPU Support:

https://www.asus.com/motherboards-components/motherboards/csm/prime-b860m-a-csm/helpdesk_qvl_cpu?model2Name=PRIME-B860M-A-CSM

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8666 (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

1

Back USB 20Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

2

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 5Gbps Header(s):

1

USB 10Gbps Header(s):

1

Thunderbolt Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27.5cm

Package Length:

27.5cm

Package Height:

6.8cm

Gross Weight:

1.32Kg

Special Features:

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x M.2 rubber package
• 1 x Screw package for M.2 SSD
• 1 x ACC Express Activation Key Card
• 1 x Quick start guide
