Product Name:

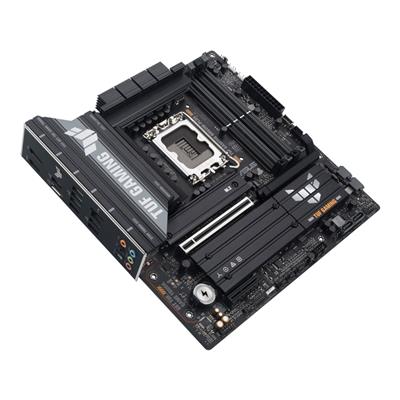

ASUS TUF GAMING B860M-PLUS (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

TUF GAMING B860M-PLUS

EAN:

4711387785126

UPC:

197105785120

Package Type:

Retail

Warranty:

3 Years

BIOS:

2 x 128 Mb Flash ROM, UEFI AMI BIOS

Chipset:

Intel B860

CPU Interface:

Socket 1851

CPU Support:

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860m-plus-wifi/helpdesk_qvl_cpu?model2Name=TUF-GAMING-B860M-PLUS

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8800 (O.C.)

Max. Memory Support:

256GB

PCI Express 5.0 x16:

1

PCI Express 4.0 x4:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

1

Back USB 5Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-A:

2

Back USB 20Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi Module

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

1

USB 5Gbps Header(s):

1

USB 10Gbps Header(s):

1

Thunderbolt Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

3 x Addressable Gen 2 headers

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27.5cm

Package Length:

27.5cm

Package Height:

6.8cm

Gross Weight:

1.63Kg

Special Features:

ASUS TUF GAMING B860M-PLUS takes all the essential elements of the latest Intel Core Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 2 x M.2 Rubber Packages
• 1 x TUF Gaming sticker
• 1 x Screw package for M.2 SSD
• 1 x Quick start guide
• 2 x SATA 6Gb/s cables
• 2 x M.2 Rubber Packages
• 1 x TUF Gaming sticker
• 1 x Screw package for M.2 SSD
• 1 x Quick start guide
