Product Name:

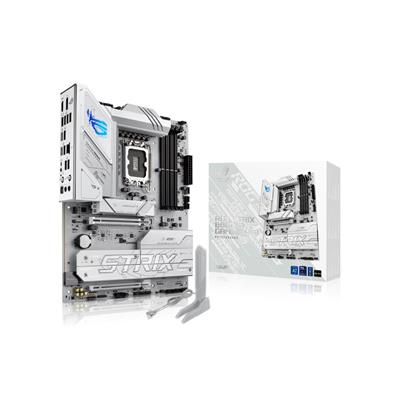

ASUS ROG STRIX B860-A GAMING WIFI (Socket 1851/B860/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG STRIX B860-A GAMING WIFI

EAN:

4711387788424

UPC:

197105788428

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

Intel B860

CPU Interface:

Socket 1851

CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-b860-a-gaming-wifi/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8600+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

Bluetooth:

v5.4

On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB4 Port(s) Type-C:

1

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back Clear CMOS Switch:

1

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

1

USB 5Gbps Header(s):

1

USB 10Gbps Header(s):

1

Thunderbolt Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen2 headers
• 1 x Thermal Sensor header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

35.6cm

Package Height:

6.8cm

Gross Weight:

2.20Kg

Special Features:

With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4 (20Gbps) port, PCIe 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch
• 1 x M.2 Q-Slide
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 4 x M.2 rubbers
• 1 x Quick start guide

Keywords:

• Motherboard
• B860
• 1851
• DDR5
• Wi-Fi
