Product Name:

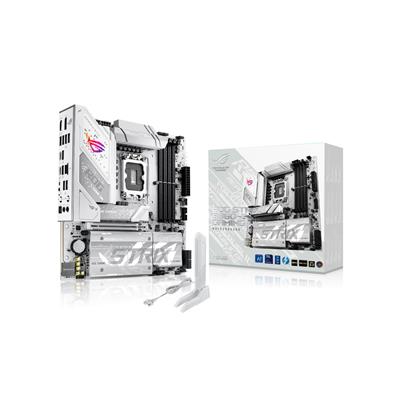

ASUS ROG STRIX B860-G GAMING WIFI (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

ROG STRIX B860-G GAMING WIFI

EAN:

4711387806838

UPC:

197105806832

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

Intel B860

CPU Interface:

Socket 1851

CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-b860-g-gaming-wifi/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 9066 (O.C.)

Max. Memory Support:

256GB

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth:

v5.4

On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

3

Back USB 10Gbps Port(s) Type-A:

1

Back USB 20Gbps Port(s) Type-C:

1

Back Thunderbolt 4 Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 10Gbps Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen2 headers
• 1 x Thermal Sensor header

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27.5cm

Package Length:

28.5cm

Package Height:

7.5cm

Gross Weight:

2.04Kg

Special Features:

Featuring Thunderbolt 4, PCIe 5.0, and Aura Sync lighting, the ROG Strix B860-G offers blazing-fast data transfers, outstanding connectivity, and a flexible aesthetic that adapts to bold or subtle preferences. Designed to meet the demands of elite gaming and advanced AI PC applications, it delivers the performance and speed you need.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch
• 1 x M.2 Q-Slide
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 3 x M.2 rubbers
• 1 x M.2 backplate rubber package
• 1 x Quick start guide

Keywords:

• Motherboard
• B860
• DDR5
• Wi-Fi 7
• Micro ATX
