Product Name:

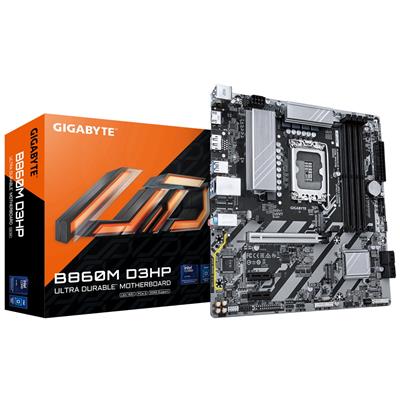

Gigabyte B860M D3HP (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B860M D3HP

EAN:

4719331866860

UPC:

889523046937

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel B860 Express

CPU Interface:

Socket 1851

CPU Support:

https://www.gigabyte.com/Motherboard/B860M-D3HP/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 9066 (O.C.)

Max. Memory Support:

256GB

PCI Express 5.0 x16:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

1 x PCIe Gen 4.0 x4

LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

3

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 2 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

26.5cm

Package Length:

26.5cm

Package Height:

5.5cm

Gross Weight:

0.96Kg

Special Features:

• Supports Intel Core Ultra processors.
• Hybrid 4+1+2 phases VRM solution.
• D5 Bionic Corsa for Infinite Memory Performance.
• AI Perfdrive: Provides optimal and customized BIOS preset profile for users.
• EZ-Latch: PCIe x16 Slot with Quick Release Design.
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors.
• Fast Networking: GbE LAN.
• Extended Connectivity: DisplayPort, HDMI.

Package Contents:

• Motherboard
• Manual
• Quick Installation Guide
• I/O Shield
• 2 x SATA cables
