Product Name:

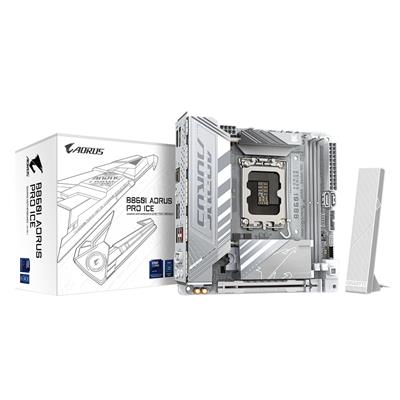

+NEW+Aorus B860I AORUS PRO ICE (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Mini ITX)

Web Address:

www.gigabyte.com

Model Number:

B860I AORUS PRO ICE

EAN:

4719331867539

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel B860 Express

CPU Interface:

Socket 1851

CPU Support:

https://www.gigabyte.com/Motherboard/B860I-AORUS-PRO-ICE/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 9200 (O.C.)

Max. Memory Support:

128GB

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

2

RAID:

Raid 0/1

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 7

Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.4

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 3.2 Port(s) Type-A Gen 1:

1

Back USB 3.2 Port(s) Type-A Gen 2:

3

Back Thunderbolt 4 Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

2 x Antenna connectors (2T2R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

2 x addressable RGB Gen2 LED strip headers

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Special Features:

• Supports Intel Core Ultra processors.
• Digital 8+1+2 phases VRM solution.
• Dual Channel DDR5: 2 x DIMMs with XMP Memory Module Support.
• D5 Bionic Corsa for Infinite Memory Performance.
• AI Perfdrive: Provides optimal and customized BIOS preset profile for users.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design.
• EZ-Latch Click: M.2 heatsinks with screwless design.
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage: 2 x M.2 slots, including 1x PCIe 5.0 x4.
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard.
• Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna.
• Extended Connectivity: ThunderBolt4 Type-C with DP-Alt, HDMI, DisplayPort.

Package Contents:

• Motherboard
• Manual
• Quick Installation Guide
• 1 x Antenna
• 2 x SATA cables
• 2 x Fan power extension cables
• 1 x M.2 thermal pad
• M.2 screw
• Computer case screw
