Product Name:

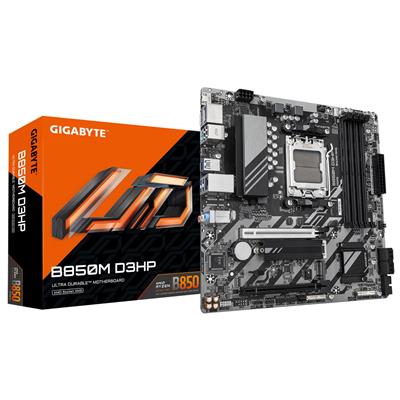

Gigabyte B850M D3HP (AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B850M D3HP

EAN:

4719331867058

UPC:

889523046586

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/B850M-D3HP/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8200 (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

1 x PCIe Gen 5.0 x41 x PCIe Gen 4.0 x4

LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

On-Board Audio:

Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back USB 3.2 Port(s) Type-C Gen 1:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

2

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

2 x Addressable RGB Gen2 LED strip headers1 x RGB LED strip header

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

26.5

Package Length:

27

Package Height:

5.5

Gross Weight:

0.985

Special Features:

X3D Turbo Mode to unleash new era gaming performance.AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.Digital 5+2+2 phases VRM solution.Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.EZ-Latch: PCIe x16 Slot with Quick Release Design.Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.Ultra-Fast Storage: 2 x M.2 slots, including 1 x PCIe 5.0 x4.Fast Networking: GbE LAN.Extended Connectivity: 2 x DP, HDMI.

Package Contents:

MotherboardManualQuick Installation GuideI/O Shield1 x SATA cableOne pack of M.2 thick/thin rubber pads

Keywords:

MotherboardAM5B850DDR5Micro ATX
