Product Name:

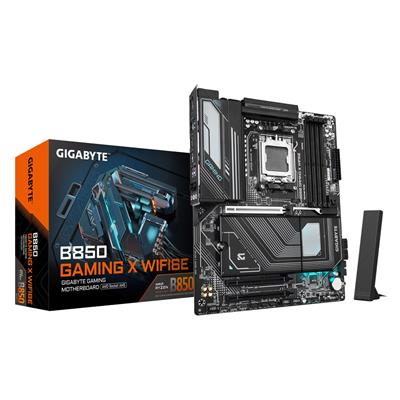

Gigabyte B850 GAMING X WIFI6E (AM5/B850/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

C-B850 GAMING X WIFI6E

EAN:

4719331866457

UPC:

889523046135

Package Type:

Retail

Warranty:

1 Year

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/B850-GAMING-X-WIFI6E/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8200 (O.C.)

Max. Memory Support:

256GB

PCI Express 5.0 x16:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.3

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

3

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

2 x Antenna connectors (2T2R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

4-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2x2:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED Strip Headers
• 1 x RGB LED Strip Header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

28cm

Package Length:

33.5cm

Package Height:

8cm

Gross Weight:

2.09Kg

Special Features:

• X3D Turbo Mode: Unleash new era gaming performance.
• DDR5 OC up to 8200MT/s.
• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.
• Digital twin 12+2+2 phases VRM solution.
• Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design.
• EZ-Latch Click: M.2 heatsinks with screwless design.
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage: 3 x M.2 slots, including PCIe 5.0x4 slot.
• Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard Ext.
• Fast Networking: 2.5GbE LAN and Wi-Fi 6E with directional Ultra-high gain antenna.
• Extended Connectivity: HDMI, Displayport.

Package Contents:

• Motherboard
• Manual
• Quick Installation Guide
• 1 x Antenna
• 2 x SATA cables
• 1 x G Connector
• Three packs of M.2 thick/thin rubber pads
