Product Name:

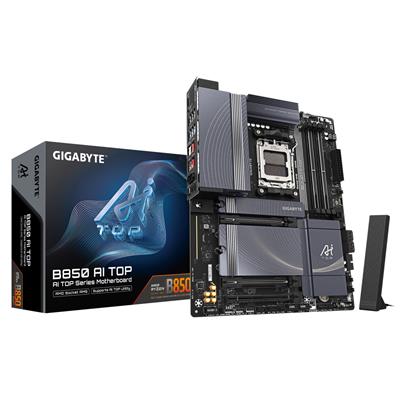

Gigabyte B850 AI TOP (AM5/B850/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

B850 AI TOP

EAN:

4719331866570

UPC:

889523045893

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/B850-AI-TOP/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8600 (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4

On-Board LAN:

• 2 x Marvell AQtion AQC113C 10GbE LAN chips
• (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 7

Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.4

On-Board Audio:

Realtek ALC1220 CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-C Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

3

Back DVI-I Port(s):

1

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

2 x SMA antenna connectors (2T2R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

2

USB 3.2 Header(s) Gen 2x2:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 1 x Noise detection header
• 2 x Temperature sensor headers

Internal Button(s):

• 1 x Power
• 1 x Reset

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

34cm

Package Height:

8cm

Gross Weight:

2.69Kg

Special Features:

• Training your own AI on your desk.
• DDR5 OC up to 8600MT/s.
• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.
• Digital twin 16+2+2 phases VRM solution.
• Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release and Screwless Design.
• EZ-Latch Click: M.2 heatsinks with screwless design.
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
• Ultra-Fast Storage: 3 x M.2 slots, including 2 x PCIe 5.0 x4.
• Efficient Thermal: VRM Thermal Armor Advanced with M.2 Thermal Guard.
• Blazing Fast Networks: Dual 10GbE LAN and Wi-Fi 7 and directional Ultra-high gain antenna.
• Extended Connectivity: Rear USB-C support up to 40Gb/s, Front USB-C 20Gb/s, HDMI.
• High-Res Audio: ALC1220 and High-End Audio Capacitor.
• Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability.
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.

Package Contents:

• B850 AI TOP Motherboard
• Manual
• Quick Installation Guide
• 1 x Antenna
• 2 x SATA cables
• 1 x Noise detection cable
• 2 x Thermistor cables
• 1 x G Connector
• 1 x M.2 thermal pad
• 2 x Packs of M.2 thick/thin rubber pads
