Product Name:

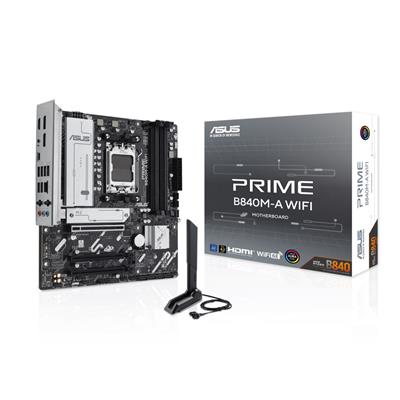

ASUS PRIME B840M-A WIFI (AM5/B840/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRIME B840M-A WIFI

EAN:

4711387797143

UPC:

197105797147

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

AMD B840

CPU Interface:

Socket AM5

CPU Support:

https://www.asus.com/motherboards-components/motherboards/prime/prime-b840m-a-wifi/helpdesk_qvl_cpu?model2Name=PRIME-B840M-A-WIFI

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7600 (O.C.)

Max. Memory Support:

192GB

PCI Express 3.0 x16:

2

PCI Express 4.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 2 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 3.0 x4

LAN Speed:

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band

Bluetooth:

v5.3

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

1

Back USB 10Gbps Port(s) Type-A:

2

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

3 x Addressable Gen 2 headers

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27.5cm

Package Length:

27.5cm

Package Height:

6.75cm

Net Weight:

0.93Kg

Gross Weight:

1.44Kg

Special Features:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x M.2 rubber package
• 2 x Screw packages for M.2 SSD
• 1 x Quick start guide
