Product Name:

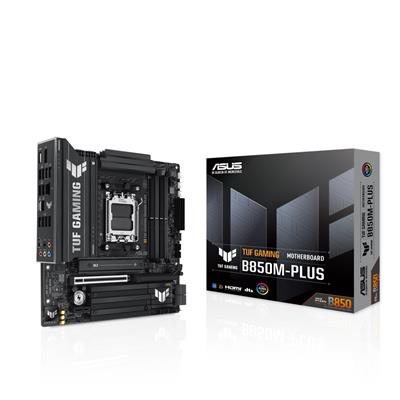

+NEW+ASUS TUF GAMING B850M-PLUS (AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX))

Web Address:

www.asus.com

Model Number:

TUF GAMING B850M-PLUS

EAN:

4711387775172

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850m-plus/helpdesk_qvl_cpu?model2Name=TUF-GAMING-B850M-PLUS

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000 (O.C.)

Max. Memory Support:

192GB

PCI Express 5.0 x16:

1

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-A:

3

Back USB 20Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 10Gbps Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

3 x Addressable Gen 2 headers

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27.5cm

Package Length:

27.5cm

Package Height:

6.75cm

Net Weight:

1.19Kg

Gross Weight:

1.65Kg

Special Features:

ASUS TUF GAMING B850M-PLUS takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x TUF GAMING sticker
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 SSD
• 1 x Quick start guide

Keywords:

• Motherboard
• AM5
• B850
• DDR5
• Micro ATX
