Product Name:

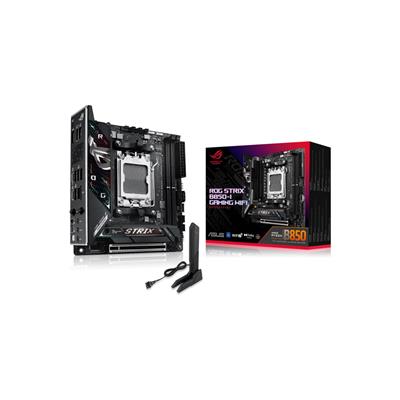

ASUS ROG STRIX B850-I GAMING WIFI (AM5/B850/DDR5/S-ATA 6Gb/s/Mini ITX)

Web Address:

www.asus.com

Model Number:

ROG STRIX B850-I GAMING WIFI

EAN:

4711387823620

UPC:

197105823624

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-b850-i-gaming-wifi/helpdesk/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 8400 (O.C.)

Max. Memory Support:

96GB

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

2

M.2 Socket(s):

2 x PCIe Gen 5.0 x4

LAN Speed:

• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

On-Board Video:

Processor with integrated graphics is required

Back USB 10Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-C:

1

Back USB 20Gbps Port(s) Type-A:

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS
• 1 x FlexKey

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 5Gbps Header(s):

1

USB 10Gbps Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 2 x Addressable Gen 2 headers
• 1 x CPU Over voltage jumper
• 1 x Thermal Sensor header

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

18.5cm

Package Length:

22.6mm

Package Height:

9.4mm

Net Weight:

0.81Kg

Gross Weight:

1.29Kg

Special Features:

The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 backplate Q-Latch package(s)
• 1 x M.2 Q-Slide package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x M.2 backplate rubber package(s)
• 1 x Quick start guide

Keywords:

• Motherboard
• AM5
• B850
• DDR5
• Wi-Fi 7
• Mini-ITX
