Product Name:

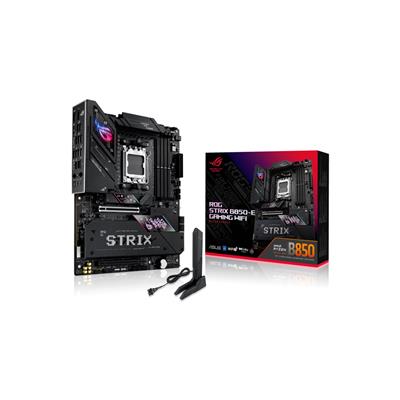

ASUS ROG STRIX B850-E GAMING WIFI (AM5/B850/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG STRIX B850-E GAMING WIFI

EAN:

4711387769300

UPC:

197105769304

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-b850-e-gaming-wifi/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000 (O.C.)

Max. Memory Support:

192GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

• 3 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB4 Port(s) Type-C:

1

Back USB 10Gbps Port(s) Type-A:

6

Back USB 20Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 10Gbps Header(s):

1

Internal Other Port(s):

• 3 x Addressable Gen 2 headers
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header

Internal Button(s):

1 x Power button

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

28.1cm

Package Length:

35.6cm

Package Height:

8.7cm

Net Weight:

1.83Kg

Gross Weight:

2.65Kg

Special Features:

The ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2 22110
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Slide package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 5 x M.2 rubbers
• 1 x Quick start guide
