Product Name:

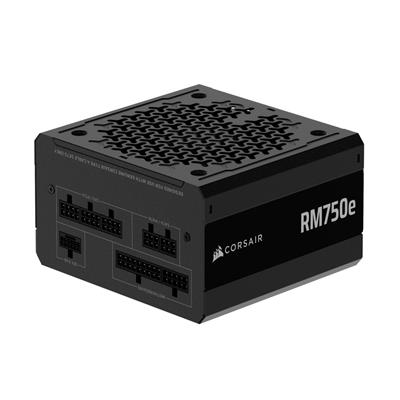

+NEW+Corsair 750W ATX Fully Modular Power Supply - RM750e - 80 PLUS Gold

Web Address:

www.corsair.com

Model Number:

CP-9020295-UK

UPC:

840006691143

Package Type:

Retail

Warranty:

7 Years

Type:

ATX 3.1 and PCIe 5.1

Maximum Power:

750W

24-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

3

12+4-pin PCI-E:

1

SATA Connector(s):

6

Peripheral Connector(s):

2

PFC:

Active

AC Input:

100-240VAC

M.T.B.F.:

100,000 hours

Colour:

Black

Cable Length:

• 1 x Modular ATX Cable (24-PIN) (24) 610mm
• 2 x Modular EPS/ATX12V Cable (8-PIN) (4+4) 750mm
• 1 x Modular PCIe Cable (8-PIN) (6+2) 650mm
• 1 x Modular 600W 12V-2x6 Cable (12+4) 650mm
• 1 x Modular 600W 12V-2x6 (12+4) to 2x 8-pin (6+2) 650mm
• 1 x Modular SATA Cable (4 connectors) 750mm
• 1 x Modular SATA/PATA Cable (2 SATA and 2 PATA) 750mm

Cooling System:

1 x 120mm

Product Width:

140mm

Product Length:

150mm

Product Height:

86mm

Package Width:

18.6cm

Package Length:

29cm

Package Height:

13cm

Gross Weight:

2.90Kg

Special Features:

• Fully Modular PSU: Reliable and efficient, low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs.
• Intel ATX 3.1 Certified: Compliant with the ATX 3.1 power standard, supporting PCIe 5.1 platform withstands 2x transient power excursions from the GPU.
• Keeps Quiet: A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
• 105°C-Rated Capacitors: Delivers steady, reliable power and dependable electrical performance.
• Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
• Zero RPM Fan Mode: For near-silent operation at lower loads.
• Cybenetics "A" Noise Rating: Professionally tested across a wide range of loads and rated for extremely low noise.
• The Right Fit: Compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
• Native 12V-2x6 GPU Power Connector: Supports the latest Nvidia 40 Series graphics cards without having to use clumsy, bulky adapters.

Package Contents:

• RMe Series ATX Power Supply
• UK Power Cord
• Cable Set
• Mounting Screws
• Cable Ties
