Product Name:

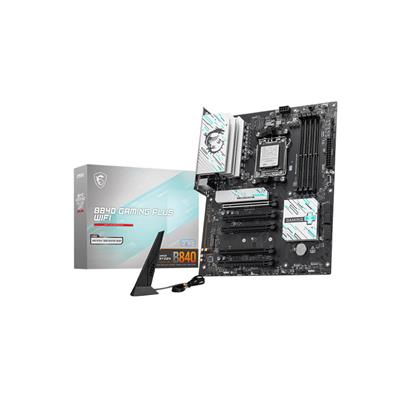

MSI B840 GAMING PLUS WIFI (AM5/B840/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

B840 GAMING PLUS WIFI

EAN:

4711377286589

UPC:

824142392966

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD B840

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/B840-GAMING-PLUS-WIFI/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000 (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

4

PCI Express 4.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 8125BG 2.5G LAN

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/b/g/n/ac/ax/be

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC897
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

1

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

Wi-Fi / Bluetooth

Back Button(s):

• 1 x Clear CMOS
• 1 x Flash BIOS

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

3

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x EZ Conn-header
• 1 x Tuning Controller Connector
• 2 x Addressable V2 RGB LED Connector
• 1 x RGB LED Connector
• 4 x EZ Debug LED

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

27cm

Package Length:

34.5cm

Package Height:

7cm

Gross Weight:

1.63Kg

Special Features:

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
• Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC).
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience.
• High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper.
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C.
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna.
• Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• EZ Wi-Fi Antenna
• 1 to 2 EZ Conn-Cable
• SATA Cable
• EZ M.2 Clip II
• EZ M.2 Clip II Remover
