Product Name:

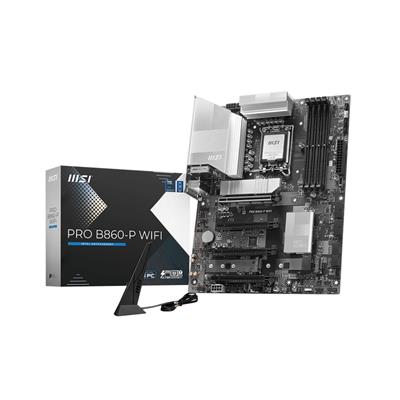

MSI PRO B860-P WIFI (Socket 1851/B860/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

PRO B860-P WIFI

EAN:

4711377286572

UPC:

824142392959

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel B860

CPU Interface:

Socket 1851

CPU Support:

https://www.msi.com/Motherboard/PRO-B860-P-WIFI/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8600+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

3

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x2

LAN Speed:

Realtek 8126 5Gbps LAN

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/b/g/n/ac/ax/be

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

2

Back Thunderbolt 4 Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

Wi-Fi / Bluetooth

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

4

USB 10Gbps Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1x Tuning Controller connector
• 2x Addressable V2 RGB LED connector
• 1x RGB LED connector
• 4 x EZ Debug LED

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

27cm

Package Length:

34cm

Package Height:

7.3cm

Gross Weight:

1.56Kg

Special Features:

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket.
• Supports DDR5 Memory, Dual Channel DDR5 8600+ MT/s (OC).
• Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB.
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience.
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna.
• Lightning-Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2.
• Ultra Connect: Thunderbolt 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• EZ M,2 Clip II Remover
• 3 x EZ M.2 Clip II
• EZ Wi-Fi Antenna
• SATA Cable
