Product Name:

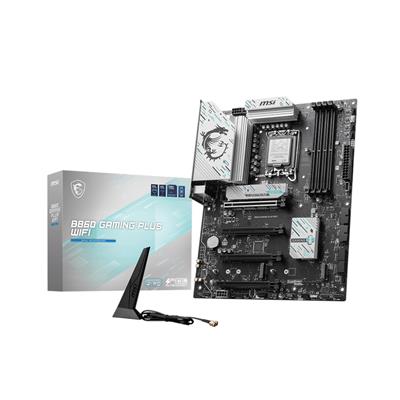

MSI B860 GAMING PLUS WIFI (1851/B860/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

B860 GAMING PLUS WIFI

EAN:

4711377289764

UPC:

824142394854

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel B860

CPU Interface:

Socket 1851

CPU Support:

https://www.msi.com/Motherboard/B860-GAMING-PLUS-WIFI/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8800+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

3

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x2

LAN Speed:

Intel Killer E5000 5Gbps LAN

Wireless NIC:

Intel Killer BE1750x Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot.
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps.
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be.

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

2

Back Thunderbolt 4 Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

Wi-Fi / Bluetooth

Back Button(s):

1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

1

4-pin ATX Power:

1

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

4

USB 10Gbps Header(s):

1

Thunderbolt AIC Connector(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Tuning Controller Connector
• 2 x Addressable V2 RGB LED Connector
• 1 x RGB LED Connector

Package Width:

27cm

Package Length:

34.5cm

Package Height:

7.4cm

Gross Weight:

1.61Kg

Package Contents:

• Motherboard
• Quick Installation Guide
• EZ Wi-Fi Antenna
• 1 to 2 EZ Conn-Cable
• SATA Cable
• EZ M.2 Clip II
• EZ M.2 Clip II Remover
