Product Name:

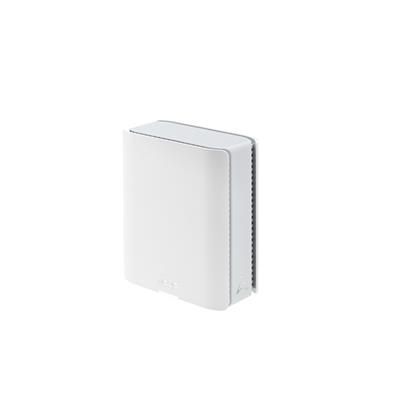

ASUS ZenWiFi BT8 WiFi 7 BE14000 Mesh System - 1 Pack - White

Web Address:

www.asus.com

Model Number:

ZENWIFI BT8 (1PK) WHITE

EAN:

4711387532034

UPC:

197105532038

Package Type:

Retail

Warranty:

3 Years

Device Type:

Mesh

Ports:

• WAN: 1 x 2.5G
• LAN: 1 x 2.5G
• lAN: 2 x 1G
• 1 x USB 3.0

Standards:

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IEEE 802.11ax
• IEEE 802.11ax
• IEEE 802.11be
• IPv4
• IPv6

Transfer Rate:

• WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
• WiFi 7 (802.11be) (5GHz): up to 4323 Mbps
• WiFi 7 (802.11be) (6GHz): up to 8643 Mbps

Network Architecture Types:

Infrastructure

Memory:

• RAM 1GB
• Flash 128MB

Antenna Type:

7 x Internal

Frequency Range:

• 2.4GHz 2x2
• 5GHz 3x3
• 6GHz 3x3

Security:

• AiProtection
• WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• Let's Encrypt
• DNS-over-TLS
• Security Scan
• Firewall

Management:

• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update

VPN Support:

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

LED indicators:

1 x Power

Button:

• WPS
• Reset
• Power

Input Power:

• AC Input: 110V-240V(50-60Hz)
• DC Output: 12V with max. 3A current

Product Width:

159mm

Product Length:

72mm

Product Height:

186mm

Package Width:

24cm

Package Length:

28cm

Package Height:

11.8cm

Gross Weight:

1.80Kg

Special Features:

• Tri-band WiFi 7 speeds up to 14 Gbps with 6 GHz WiFi, MLO, and 4K-QAM.
• AI-powered Smart AiMesh boosts coverage up to 5900 sq. ft. (2-pack) and easy extendibility with compatible ASUS routers for seamless and secure whole home WiFi.
• Seven internal antennas and eight high-power front-end modules eliminates WiFi dead zones.
• 24/7 end-to-end protection with commercial-grade AiProtection Pro and advanced VPNs.
• IoT Network, parental controls and VPN easy setup on multiple devices with Smart Home Master SSIDs.
• Flexible dual 2.5G Ethernet ports for superfast wired backhaul.
• 4G LTE/5G Mobile Tethering for always-on internet.

Package Contents:

• 1 x ZenWiFi BT8
• RJ45 Cable
• Power Adapter
• Warranty Card
• Quick Start Guide

Keywords:

• Wireless
• Mesh
