Product Name:

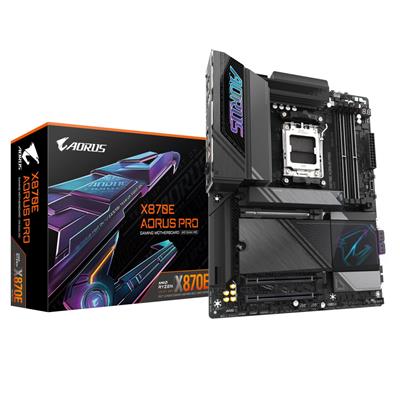

Aorus X870E AORUS PRO (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

X870E AORUS PRO

EAN:

4719331864866

UPC:

889523045251

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/X870E-AORUS-PRO/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000 (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 3 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4

On-Board LAN:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 7

Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.3

On-Board Audio:

• Realtek ALC1220 CODEC
• High Definition Audio 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

3

Back USB4 Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

• 1 x Q-Flash Plus
• 2 x Antenna Connectors (2T2R)

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

USB 3.2 Header(s) Gen 2x2:

1

HDMI Port(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED Strip Headers
• 1 x RGB LED Strip Header
• 1 x Noise Detection Header
• 2 x Temperature Sensor Headers

Internal Button(s):

• 1 x Power
• 1 x Reset

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

34cm

Package Height:

8cm

Gross Weight:

2.35Kg

Special Features:

• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.
• Digital twin 16+2+2 phases VRM solution.
• Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release and Screwless Design.
• EZ-Latch Click: M.2 heatsinks with screwless design.
• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup.
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
• Ultra-Fast Storage: 4 x M.2 slots, including 3 x PCIe 5.0 x4.
• Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard L
• Fast Networking: 2.5GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna.
• Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI.
• Reliable Audio: Realtek ALC1220 HD Audio and Audiophile Grade Capacitors.
• Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability.
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.

Package Contents:

• Motherboard
• Manual
• Quick Installation Guide
• 1 x Antenna
• 2 SATA cables
• 5 One noise detection cable
• 5 One G Connector
