Product Name:

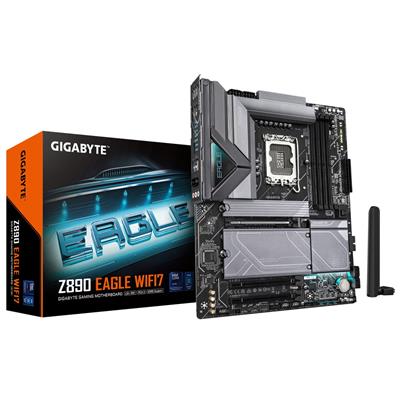

Gigabyte Z890 EAGLE WIFI7 (Socket 1851/Z890/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

Z890 EAGLE WIFI7

EAN:

4719331864927

UPC:

889523045299

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel Z890 Express

CPU Interface:

Socket 1851

CPU Support:

https://www.gigabyte.com/Motherboard/Z890-EAGLE-WIFI7/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8800 (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 7

Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.4

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back USB4 Port(s) Type-C:

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

2 x Antenna connectors (2T2R)

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

Thunderbolt AIC Connector(s):

2

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header

Internal Button(s):

• 1 x Power
• 1 x Q-Flash Plus
• 1 x Reset

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

34cm

Package Height:

8cm

Gross Weight:

1.96Kg

Special Features:

• Supports Intel Core Ultra processors (Series 2).
• Digital twin 14+1+2 phases VRM solution.
• D5 Bionic Corsa for Infinite Memory Performance.
• AORUS AI SNATCH: Auto-Overclocking Software by AI models.
• AI Perfdrive: Provides optimal and customized BIOS preset profile for users.
• Premium Compatibility: 4 x DDR5 with XMP Memory Module Support.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release and Screwless Design.
• EZ-Latch Click: M.2 heatsinks with screwless design.
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
• Ultra-Fast Storage: 4 x M.2 slots, including 1x PCIe 5.0 x4.
• Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard.
• Fast Networking: 2.5GbE LAN and Wi-Fi 7.
• Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort.
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.

Package Contents:

• Motherboard
• Manual
• Quick Installation Guide
• 1 x Antenna
• 2 x SATA Cables
