Product Name:

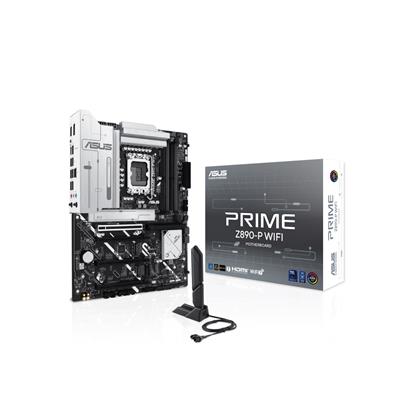

ASUS PRIME Z890-P WIFI (Socket 1851/Z890/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

PRIME Z890-P WIFI

EAN:

4711387754818

UPC:

197105754812

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 (128+128) Mb Flash ROMUEFI AMI BIOS

Chipset:

Intel Z890

CPU Interface:

Socket 1851

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8400+ (O.C.)

Max. Memory Support:

192GB

PCI Express 4.0 x16:

3

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

1 x PCIe Gen 5.0 x42 x PCIe Gen 4.0 x41 x PCIe Gen 4.0 x4/SATA

LAN Speed:

1 x Realtek 2.5Gb EthernetASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency bandSupports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth:

v5.4

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

1

Back Thunderbolt 4 Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

USB 10Gbps Header(s):

1

Thunderbolt Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

3 x Addressable Gen2 headers1 x Aura RGB header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

35.5cm

Package Height:

6.8cm

Gross Weight:

1.86Kg

Special Features:

ASUS 5X PROTECTION IIIASUS Q-DesignASUS Thermal SolutionASUS EZ DIYAura Sync

Package Contents:

Motherboard2 x SATA 6Gb/s cables1 x ASUS WiFi Q-Antenna1 x M.2 rubber package2 x Screw packages for M.2 SSD1 x Quick start guide

Keywords:

MotherboardZ8901851DDR5WiFIBluetooth
