Product Name:

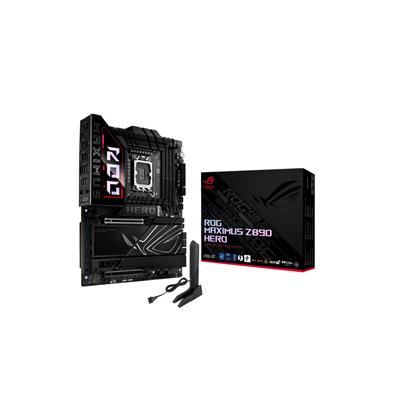

ASUS ROG MAXIMUS Z890 HERO (Socket 1851/Z890/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG MAXIMUS Z890 HERO

EAN:

4711387747223

UPC:

197105747227

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROMUEFI AMI BIOS

Chipset:

Intel Z890

CPU Interface:

Socket 1851

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8800+ (O.C.)

Max. Memory Support:

192GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

3 x PCIe Gen 5.0 x43 x PCIe Gen 4.0 x4

On-Board LAN:

1 x Intel 2.5Gb Ethernet1 x Realtek 5Gb Ethernet

Wireless NIC:

Wi-Fi 7

Wireless Technology:

2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency bandSupports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

On-Board Video:

Processor with integrated graphics is required

Back USB 5Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-C:

1

Back Thunderbolt 4 Port(s):

2

Back HDMI Port(s):

1

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

1 x BIOS FlashBack1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

USB 10Gbps Header(s):

1

USB 20Gbps Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

3 x Addressable Gen 2 headers1 x Alteration PCIe mode switch1 x Thermal Sensor header1 x Thunderbolt (USB4) header

Internal Button(s):

1 x ReTry1 x Start1 x FlexKey

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

31cm

Package Length:

37cm

Package Height:

11cm

Gross Weight:

4.23Kg

Special Features:

Extreme OC KitExtreme Engine Digi+ASUS Q-DesignASUS Thermal SolutionASUS EZ DIYAura SyncROG M.2 PowerBoostFront Panel USB 20Gbps with Quick Charge 4+ Support

Package Contents:

Motherboard1 x ARGB RGB extension cable4 x SATA 6Gb/s cables 1 x DDR5 fan holder1 x Thermal pad for M.2 221101 x ASUS WiFi Q-Antenna1 x Q-connector1 x M.2 Q-Latch package3 x M.2 Q-Slide packages1 x ROG stickers6 x M.2 rubber packages1 x ROG thank you card1 x ROG Bottle Opener1 x USB drive with utilities and drivers 1 x Quick start guide

Keywords:

Motherboard1851Z890DDR5WiFiBluetooth
