Product Name:

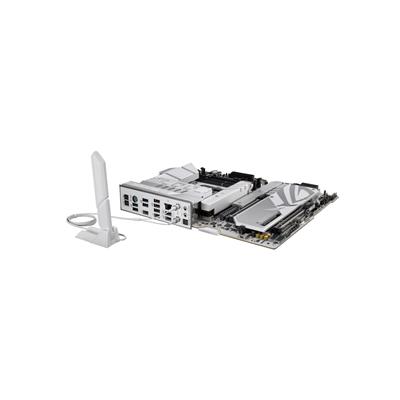

ASUS ROG MAXIMUS Z890 APEX (Socket 1851/Z890/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG MAXIMUS Z890 APEX

EAN:

4711387754290

UPC:

197105754294

Package Type:

Retail

Warranty:

3 Years

BIOS:

2 x 256 Mb Flash ROMUEFI AMI BIOS

Chipset:

Intel Z890

CPU Interface:

Socket 1851

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 8800+ (O.C.)

Max. Memory Support:

96GB

PCI Express 4.0 x16:

2

PCI Express 5.0 x16:

2

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

3 x PCIe Gen 5.0 x43 x PCIe Gen 4.0 x4

On-Board LAN:

1 x Realtek 5Gb Ethernet

Wireless NIC:

Wi-Fi 7

Wireless Technology:

2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency bandSupports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 5Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-A:

4

Back USB 20Gbps Port(s) Type-A:

1

Back Thunderbolt 4 Port(s):

2

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi Module

Back Button(s):

1 x BIOS FlashBack1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

USB 10Gbps Header(s):

1

USB 20Gbps Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

1 x 80 Light Bar jumper3 x Addressable Gen 2 headers1 x Alteration PCIe mode switch18 x ProbeIt Measurement Points1 x RSVD header1 x Thermal Sensor header1 x Thunderbolt (USB4) header

Internal Button(s):

4 x BCLK button1 x BIOS Switch button 1 x FlexKey button1 x ReTry button1 x Start button

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

30cm

Package Length:

37cm

Package Height:

11cm

Gross Weight:

3.69Kg

Special Features:

Extreme OC KitExtreme Engine Digi+ASUS Q-DesignASUS Thermal SolutionASUS EZ DIYAura SyncDual BIOSFront Panel USB 20Gbps with Quick Charge 4+ Support

Package Contents:

Motherboard1 x ROG DIMM.2 with heatsink1 x M.2 pad for ROG DIMM.22 x M.2 screw package for ROG DIMM.21 x Thermal pad for M.2 221101 x ROG Memory Fan Kit1 x ASUS WiFi Q-Antenna1 x Q-connector1 x ROG VIP card3 x M.2 Q-Slide package5 x M.2 backplate rubber packages1 x ROG Bottle Opener1 x USB drive with utilities and drivers 1 x Quick start guide

Keywords:

MotherboardZ890DDR51851Wi-Fi 7Bluetooth
