Product Name:

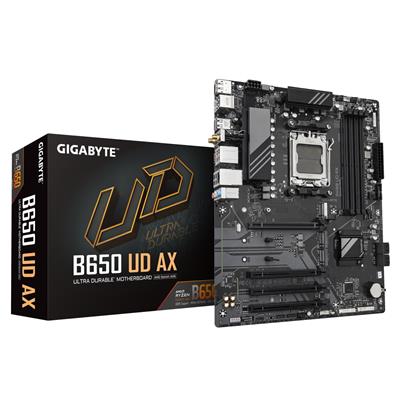

Gigabyte B650 UD AX (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

B650 UD AX

EAN:

4719331863944

UPC:

889523044278

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B650

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/B650-UD-AX-rev-10/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7600 (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

3

PCI Express 4.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

On-Board LAN:

Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless NIC:

Wi-Fi 6

Wireless Technology:

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• Support for 11ax wireless standard

On-Board Audio:

• Realtek Audio CODEC
• ALC897
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

6

Back USB 3.2 Port(s) Type-C Gen 1:

1

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

2 x SMA antenna connectors

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

3

USB 3.2 Header(s) Gen 1:

2

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 1 x Serial Port Header

Internal Button(s):

1 x Q-Flash Plus

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

34cm

Package Height:

8cm

Gross Weight:

1.35Kg

Special Features:

• AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors.
• Unparalleled Performance: 6+2+2 Phases Digital VRM Solution.
• Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.
• SuperSpeed Storage: 1 x PCIe 5.0 + 2 x PCIe 4.0 M.2 Connectors.
• EZ-Latch: PCIe x16 Slot with Quick Release Design.
• Fast Networks: Wi-Fi 6 802.11ax and GbE LAN.
• Extended Connectivity: DP, HDMI, Rear USB 10Gb/s.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents:

• Motherboard
• Manual
• 2 x Antennas
• IO Shield
• 2 x SATA Cables
• M.2 screw

Keywords:

• Motherboard
• AM5
• B650
• DDR5
