Product Name:

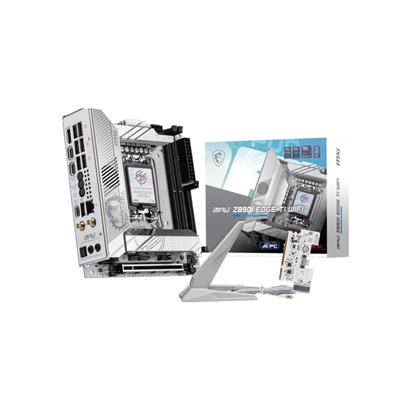

MSI MPG Z890I EDGE TI WIFI (Socket 1851/Z890/DDR5/S-ATA 6Gb/s/Mini-ITX)

Web Address:

uk.msi.com

Model Number:

MPG Z890I EDGE TI WIFI

EAN:

4711377274494

UPC:

824142388099

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel Z890

CPU Interface:

Socket 1851

CPU Support:

https://www.msi.com/Motherboard/MPG-Z890I-EDGE-TI-WIFI/support#CPU

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 8600 (O.C.)

Max. Memory Support:

128GB

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

2

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 4.0 x4/SATA
• 2 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 5.0 x4

LAN Speed:

1 x Intel Killer E5000B 5G LAN

Wireless NIC:

Intel Killer BE1750x Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot.
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps.
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be.

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-bit/384kHz playback on front panel
• Supports S/PDIF output

On-Board Video:

Processor with integrated graphics is required

Back USB 10Gbps Port(s) Type-A:

7

Back USB 10Gbps Port(s) Type-C:

1

Back Thunderbolt 4 Port(s):

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Button(s):

• Flash BIOS
• Clear CMOS
• Smart

Internal I/O Connectors:

Wi-Fi / Bluetooth

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

USB 20Gbps Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Thermal Sensor connectors
• 1 x Addressable V2 RGB LED connector

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

22.5cm

Package Length:

27.5cm

Package Height:

5.7cm

Gross Weight:

1.34Kg

Special Features:

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket.
• Supports DDR5 Memory, up to 8600+ MT/s (OC).
• Ultra Performance: Direct 10+1+1+1 Power Phases, Core Boost, Memory Boost, 14-layer PCB made by 1oz thickened copper and server-grade level material.
• Frozr Guard: Enlarged heatsink with heat-pipe, Frozr Heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
• EZ DIY: EZ M.2 Shield Frozr II, Smart Button and EZ Antenna.
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2.
• Ultra Connect: Thunderbolt 4 and Intel Killer 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• Cable Sticker
• EZ Wi-Fi Antenna
• 5-in-1 Xpander USB 5Gbps Cable
• 5-in-1 Xpander
• USB Drive
• 2 x SATA Cables
• 3 x M.2 Screws
• 1 to 3 EZ Conn-Cable (V2)
• EZ Front Panel Cable
