Product Name:

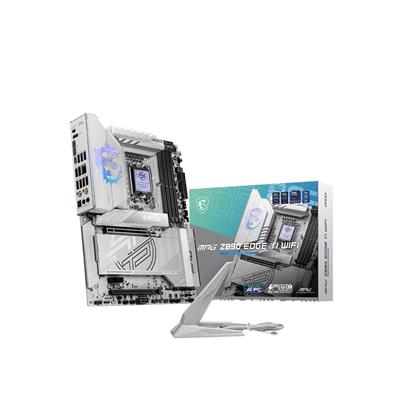

MSI MPG Z890 EDGE TI WIFI (Socket 1851/Z890/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

MPG Z890 EDGE TI WIFI

EAN:

4711377260800

UPC:

824142383773

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel Z890

CPU Interface:

Socket 1851

CPU Support:

https://www.msi.com/Motherboard/MPG-Z890-EDGE-TI-WIFI/support

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 9200 (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

On-Board LAN:

1 x Intel Killer E5000B 5G LAN

Wireless NIC:

Intel Killer BE1750x Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC1220P Codec
• 7.1-Channel USB High Definition Audio
• Supports S/PDIF output

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

1

Back USB 5Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-C:

1

Back Thunderbolt 4 Port(s):

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

• Wi-Fi / Bluetooth
• 4 x EZ Debug LED
• 1 x EZ Digit Debug LED

Back Button(s):

• Clear CMOS
• Flash BIOS

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

2

USB 20Gbps Header(s):

1

Thunderbolt AIC Connector(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x EZ Conn-header
• 1 x Thermal Sensor connectors
• 3 x Addressable V2 RGB LED connector
• 1 x RGB LED connector

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

27cm

Package Length:

34.5cm

Package Height:

7cm

Gross Weight:

2.34Kg

Special Features:

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket.
• Supports DDR5 Memory, up to 9200+ MT/s (OC).
• Ultra Performance: 16+1+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
• Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2.
• Ultra Connect: Thunderbolt 4 and Intel Killer 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• Cable Sticker
• EZ Wi-Fi Antenna
• 3 x EZ M.2 Clip II
• EZ M.2 Clip II Remover
• M.2 Screw / Standoff Set
• USB Drive
• 2 x SATA Cables
• 1 to 3 EZ Conn-Cable
• EZ Front Panel Cable
