Product Name:

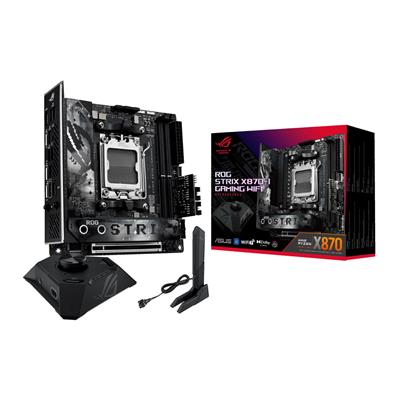

ASUS ROG STRIX X870-I GAMING WIFI (Socket AM5/X870/DDR5/S-ATA 6Gb/s/Mini-ITX)

Web Address:

www.asus.com

Model Number:

ROG STRIX X870-I GAMING WIFI

EAN:

4711387740309

UPC:

197105740303

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROMUEFI AMI BIOS

Chipset:

AMD X870

CPU Interface:

Socket AM5

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 8400 (O.C.)

Max. Memory Support:

96GB

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

2

RAID:

Raid 0/1/10

M.2 Socket(s):

1 x PCIe Gen 5.0 x41 x PCIe Gen 4.0 x4

On-Board LAN:

1 x Intel 2.5Gb EthernetASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency bandSupport Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate

Bluetooth:

v5.4

On-Board Audio:

ROG Strix Hive II Audio Features

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

3

Back USB 10Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-C:

1

Back USB 40Gbps Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

1 x BIOS FlashBack1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 10Gbps Header(s):

1

Internal Other Port(s):

2 x Addressable Gen 2 headers1 x 2-pin Power Button header1 x Thermal Sensor header2 x USB Type-C connectors to install ROG FPS card

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

22.5cm

Package Length:

28.5cm

Package Height:

10cm

Gross Weight:

1.79Kg

Package Contents:

Motherboard1 x Panel cable1 x ROG USB2.0 splitter cable2 x SATA 6Gb/s cables1 x ROG FPS Card1 x ROG STRIX HIVE II1 x USB Type-C power connection cable1 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers1 x M.2 rubber package1 x Quick start guide

Keywords:

MotherboardAM5X870DDR5WiFiBluetooth
