Product Name:

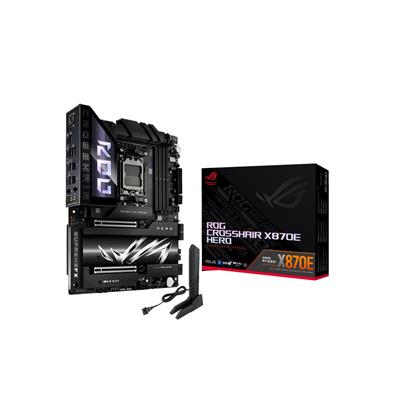

ASUS ROG CROSSHAIR X870E HERO (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG CROSSHAIR X870E HERO

EAN:

4711387710302

UPC:

197105710306

Package Type:

Retail

Warranty:

3 Years

BIOS:

256Mb Flash ROMUEFI AMI BIOS

Chipset:

AMD X870E

CPU Interface:

Socket AM5

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8200 (O.C.)

Max. Memory Support:

192GB

PCI Express 5.0 x16:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

3 x PCIe Gen 5.0 x42 x PCIe Gen 4.0 x4

On-Board LAN:

1 x Intel 2.5Gb Ethernet1 x Realtek 5Gb EthernetASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency bandSupports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082.Impedance sense for front and rear headphone outputs.Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking.High quality 120 dB SNR stereo playback output and 110 dB SNR recording input.Supports up to 32-Bit/384 kHz playback on front panel.

On-Board Video:

Processor with integrated graphics is required

Back USB 10Gbps Port(s) Type-A:

6

Back USB 10Gbps Port(s) Type-C:

2

Back USB 40Gbps Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

1 x BIOS FlashBack1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

USB 20Gbps Header(s):

2

Front Panel Audio Connector:

1

Internal Other Port(s):

3 x Addressable Gen2 headers1 x Thermal Sensor header

Internal Button(s):

1 x Alteration PCIe mode switch1 x FlexKey1 x ReTry1 x Start

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

31cm

Package Length:

37cm

Package Height:

11cm

Gross Weight:

4.05Kg

Special Features:

The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen 9000 Series processors.

Package Contents:

Motherboard1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna1 x Q-connector2 x M.2 Q-Latch package3 x M.2 Q-Slide package5 x M.2 rubber package1 x ROG stickers1 x ROG thank you card1 x ROG Bottle Opener1 x USB drive with utilities and drivers 1 x Quick start guide

Keywords:

MotherboardAM5X870EDDR5WiFi &Bluetooth
