Product Name:

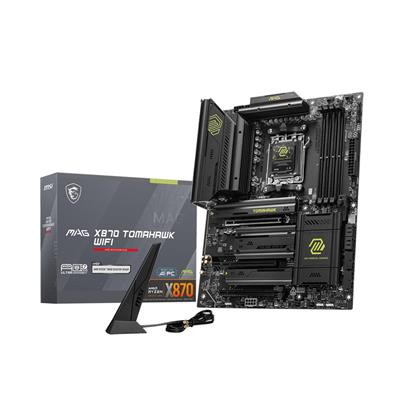

MSI MAG X870 TOMAHAWK WIFI (Socket AM5/X870/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

C-MAG X870 TOMAHAWK WIFI

EAN:

4711377254557

UPC:

824142380499

Package Type:

Retail

Warranty:

1 Year

Chipset:

AMD X870

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/MAG-X870-TOMAHAWK-WIFI/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8400+ (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

On-Board LAN:

Realtek 8126-CG 5G LAN

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
• Supports 802.11 a/b/g/n/ac/ax/be

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-bit/384kHz playback on front panel
• Supports S/PDIF output

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

3

Back USB 10Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-C:

1

Back USB 40Gbps Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Button(s):

• Clear CMOS
• Flash BIOS

Internal I/O Connectors:

Wi-Fi / Bluetooth

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

4

USB 20Gbps Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable V2 RGB LED Connector
• 1 x RGB LED Connector

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

27cm

Package Length:

34cm

Package Height:

7cm

Gross Weight:

2.18Kg

Special Features:

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC).
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience.
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna.
• Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2.
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• 2 x SATA Cables
• EZ M.2 Clip II
• EZ M.2 Clip II Remover
• M.2 Plate Screw
• USB Drive
• Cable Sticker
• EZ Wi-Fi Antenna
• 1 to 3 EZ Conn-Cable (V2)
• EZ Front Panel Cable
