Product Name:

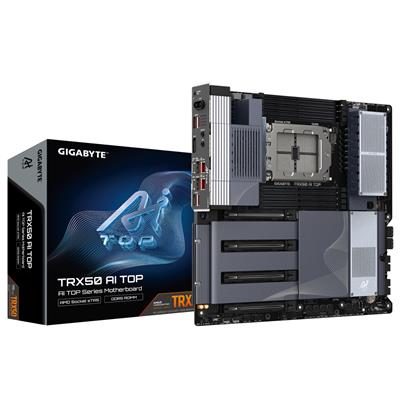

Gigabyte TRX50 AI TOP (Socket sTR5/TRX50/DDR5/S-ATA 6Gb/s/Extended ATX)

Web Address:

www.gigabyte.com

Model Number:

TRX50 AI TOP

EAN:

4719331863845

UPC:

889523044667

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD TRX50

CPU Interface:

Socket sTR5

CPU Support:

https://www.gigabyte.com/Motherboard/TRX50-AI-TOP/support#support-cpu

RAM Technology:

DDR5 ECC Registered

RAM Slots:

8 x 288-pin

Max. Memory Support:

2TB

PCI Express 5.0 x16:

4

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

On-Board LAN:

2 x Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• Support for 11be 320MHz wireless standard

Bluetooth:

v5.3

On-Board Audio:

• Realtek® ALC4080 CODEC (rear panel audio)
• Support for DTS:X Ultra
• High Definition Audio
• 2-channel
• Realtek ALC897 CODEC (front panel audio)

On-Board Video:

Processor with integrated graphics is required

Back USB 3.2 Port(s) Type-A Gen 2:

6

Back USB4 Port(s) Type-C:

2

Back DisplayPort(s) In:

1

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back Other Port(s):

2 x SMA antenna connectors

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

4

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

USB 3.2 Header(s) Gen 2x2:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 1 x Noise detection header
• 2 x Temperature sensor headers

Internal Button(s):

• 1 x Power
• 1 x Clear CMOS
• 1 x Reset

Form Factor:

Extended ATX

Product Width:

305mm

Product Length:

330mm

Package Width:

38cm

Package Length:

40cm

Package Height:

10.5cm

Gross Weight:

5.62Kg

Special Features:

• Training your own AI on your desk.
• Socket sTR5: Supports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors.
• Breakthrough Performance: 16+8+4 Phases Digital VRM Solution.
• 8 Channel DDR5: 8 x SMD ECC R-DIMMs with Maximum 2TB capacity.
• Reinforced Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard.
• Ultimate Scalability: 4 x PCIe 5.0 x16 slots for Multi-GPU and 4 x PCIe 5.0 x4 M.2 slots.
• Next-gen Connectivity: Dual USB4 Type-C ports.
• Blazing Fast Networks: Dual 10GbE LAN, Wi-Fi 7 with Ultra-high gain directional antenna and WIFI EZ-Plug.
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.
• EZ-Latch Click: M.2 heatsinks with screwless design.
• EZ-Latch Plus: M.2 slots with quick release design.
• Hi-Fi Audio with DTS:X Ultra: ALC4080+ALC897 CODEC.
• UC BIOS: User-Centred intuitive UX with Quick Access function.

Package Contents:

• TRX50 AI TOP motherboard
• Manual
• Quick Installation Guide
• 1 x Antenna
• 4 x SATA cables
• 1 x Noise detection cable
• 2 x Thermistor cables
• 1 x G Connector
• 1 x Dual 24-pin ATX power supply adapter cable
• 1 x DisplayPort in cable
