Product Name:

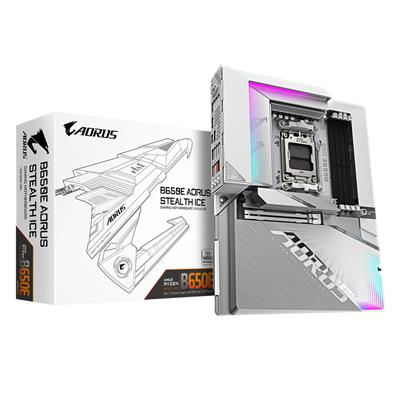

Aorus B650E AORUS STEALTH ICE (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

C-B650E AORUS STEALTH ICE

EAN:

4719331863777

UPC:

889523044711

Package Type:

Retail

Warranty:

1 Year

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B650

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/B650E-AORUS-STEALTH-ICE/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000 (O.C.)

Max. Memory Support:

192GB

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

On-Board LAN:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands.
• Support for 11be 160MHz wireless standard.

Bluetooth:

v5.4

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

5

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

• 2 x SMA Antenna connectors
• 1 x USB Type-C port (DisplayPort)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2x2:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 2 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 1 x HDMI port (Only available with the AMD Radeon Graphics Processors)

Internal Button(s):

1 x Reset

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

23.5cm

Package Length:

35cm

Package Height:

8cm

Gross Weight:

3.07Kg

Special Features:

• AMD Socket AM5: Supports AMD Ryzen 9000/8000/ 7000 Series Processors.
• Digital twin 12+2+2 phases VRM solution.
• Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• M.2 EZ-Match: Magnetic alignment for easy installation of large heat sinks.
• EZ-Latch Click: M.2 heatsinks with screwless design.
• EZ-Latch Plus: M.2 slots with Quick Release and Screwless Design.
• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup.
• UC BIOS: User-Centred intuitive UX with Quick Access function.
• Back Plate: With an iron base plate providing enhanced stability and support, this design not only boasts an attractive appearance but also excels in functionality.
• Ultra-Fast Storage: 3 x M.2 slots, including 1 x PCIe 5.0 x4.
• Efficient Overall Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard XL.
• Fast Networking: 2.5GbE LAN and Wi-Fi 7 with Ultra-high gain directional antenna.
• Extended Connectivity: HDMI, Onboard HDMI, USB-C with DP-Alt.
• Reliable Audio: 8-Ch HD Audio and Audiophile Grade Capacitors.
• World's First true White Reverse Connector Motherboard.

Package Contents:

• B650E AORUS STEALTH ICE Motherboard
• Manual
• Quick Installation Guide
• 1 x Antenna
• 2 x SATA cables
• 1 x G Connector
