Product Name:

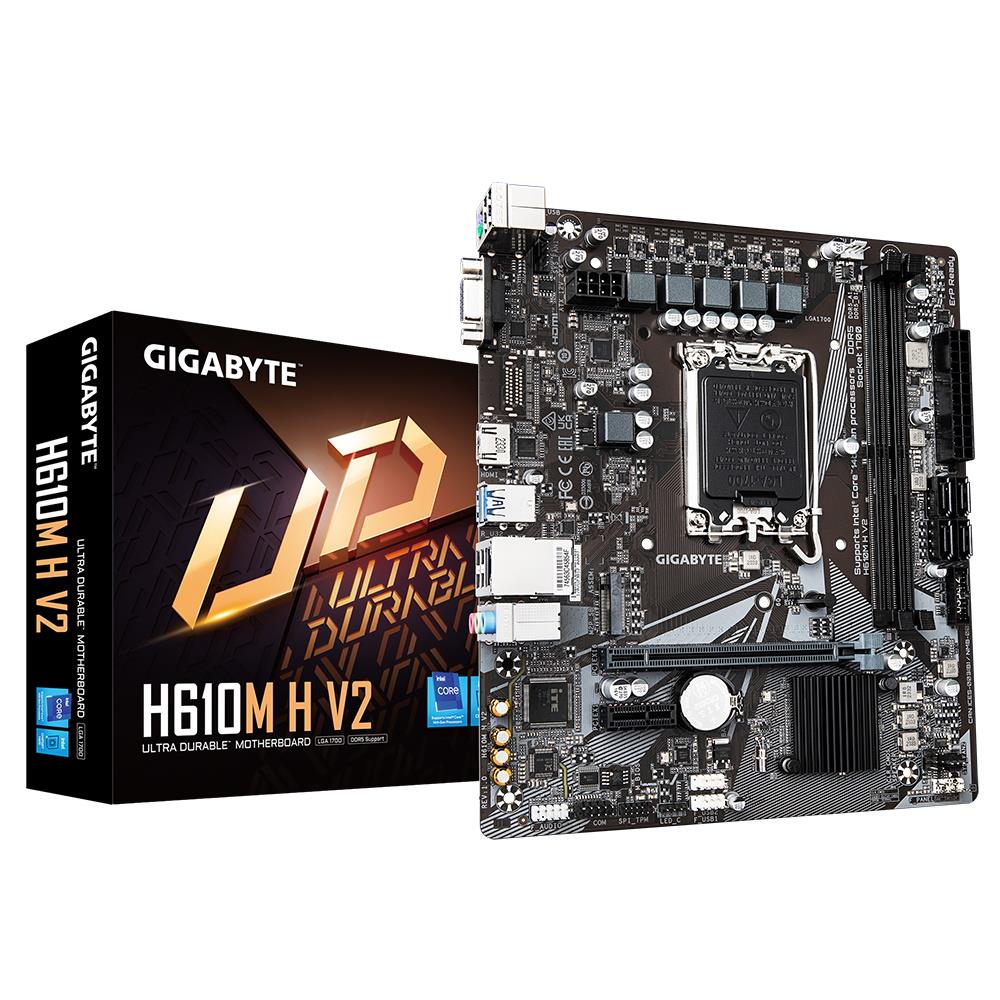

Gigabyte H610M H V2 (Socket 1700/H610/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

H610M H V2

EAN:

4719331859985

UPC:

889523040980

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel H610 Express

CPU Interface:

Socket 1700

CPU Support:

https://www.gigabyte.com/Motherboard/H610M-H-V2-rev-10/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 5600 (O.C.)

Max. Memory Support:

96GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

1 x PCIe Gen 3.0 x4/SATA

LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

On-Board Audio:

Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

2

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

1 x RGB LED Strip Header

Form Factor:

Micro ATX

Product Width:

196mm

Product Length:

223mm

Package Width:

23.5cm

Package Length:

27cm

Package Height:

5.1cm

Gross Weight:

0.71Kg

Special Features:

Supports Intel Core 14th/ 13th /12th processors.Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs.4+1+1 Hybrid Digital VRM Design.GbE LAN with Bandwidth Management.NVMe PCIe 3.0 x4 M.2.High Quality Audio Capacitors and Audio Noise Guard.Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.GIGABYTE APP Centre, Simple and Easy Use.Anti-Sulphur Resistors Design.

Package Contents:

Motherboard

Keywords:

Motherboard1700H610DDR5M-ATXMicro ATX
