Product Name:

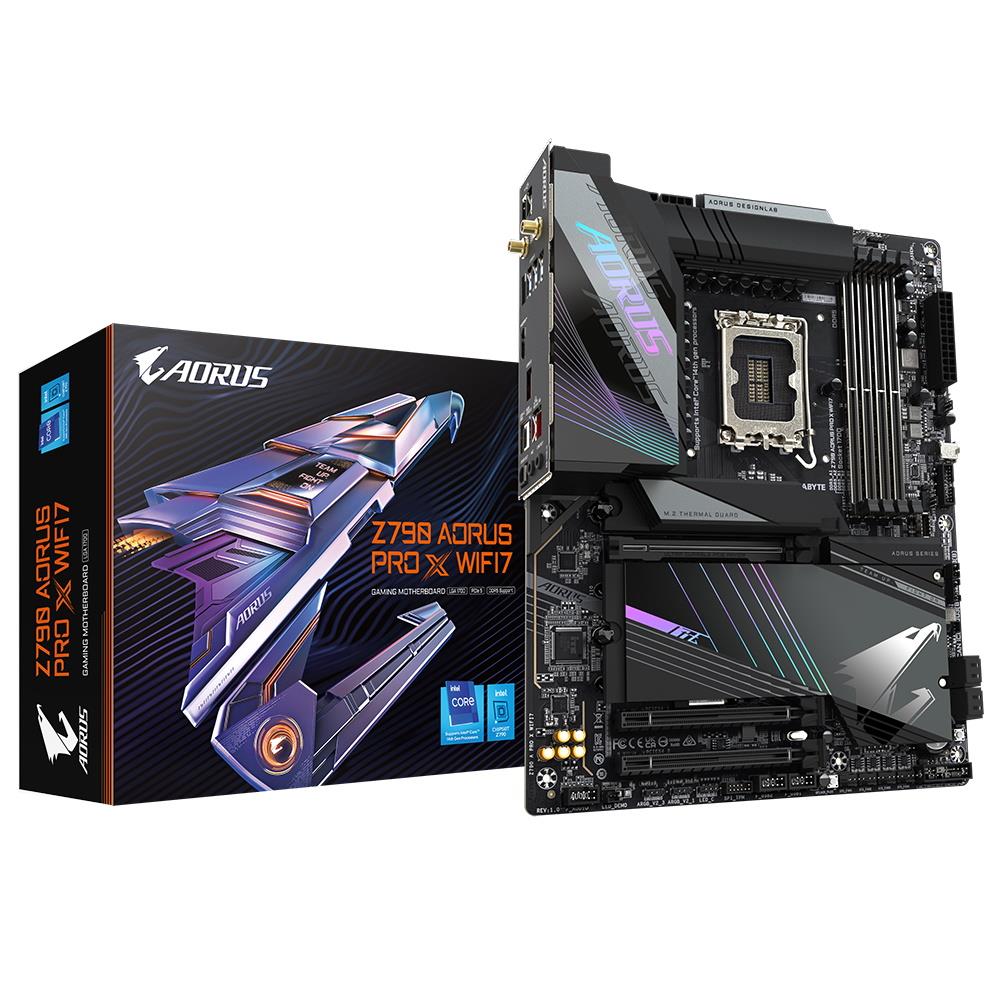

Gigabyte Z790 AORUS PRO X WIFI7 (Socket 1700/Z790 Express/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

Z790 AORUS PRO X WIFI7

EAN:

4719331860141

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel Z790 Express

CPU Interface:

Socket 1700

CPU Support:

https://www.gigabyte.com/Motherboard/Z790-AORUS-PRO-X-WIFI7/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8266 (O.C.)

Max. Memory Support:

192GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

LAN Speed:

Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 7

Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.3

On-Board Audio:

• Realtek ALC1220-VB CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

2 x SMA antenna connectors (2T2R)

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

USB 3.2 Header(s) Gen 2x2:

1

Thunderbolt AIC Connector(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 1 x Noise detection header
• 2 x Temperature sensor headers

Internal Button(s):

• 1 x Q-Flash Plus
• 1 x Reset

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

34.5cm

Package Height:

8cm

Gross Weight:

2.28Kg

Special Features:

• Supports Intel Core 14th and 13th processors.
• Digital twin 18+1+2 phases VRM solution.
• Dual Channel DDR5: 4 x DIMMs with XMP 3.0 memory module support.
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.
• EZ-Latch Click: M.2 heatsinks with screwless design.
• EZ-Latch Plus: M.2 slots with quick release design.
• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup.
• UC BIOS: User-Centred intuitive UX with Quick Access function.
• Ultra-Fast Storage: 5 x M.2 slots, including 1 x PCIe 5.0 x4.
• Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL.
• Fast Networking: 5GbE LAN and Wi-Fi 7 with Ultra-high gain antenna.
• Extended Connectivity: HDMI, Front and Rear USB-C 20Gb/s.
• High-Res Audio: ALC1220 and Audiophile Grade Capacitors.

Package Contents:

Motherboard
