Product Name:

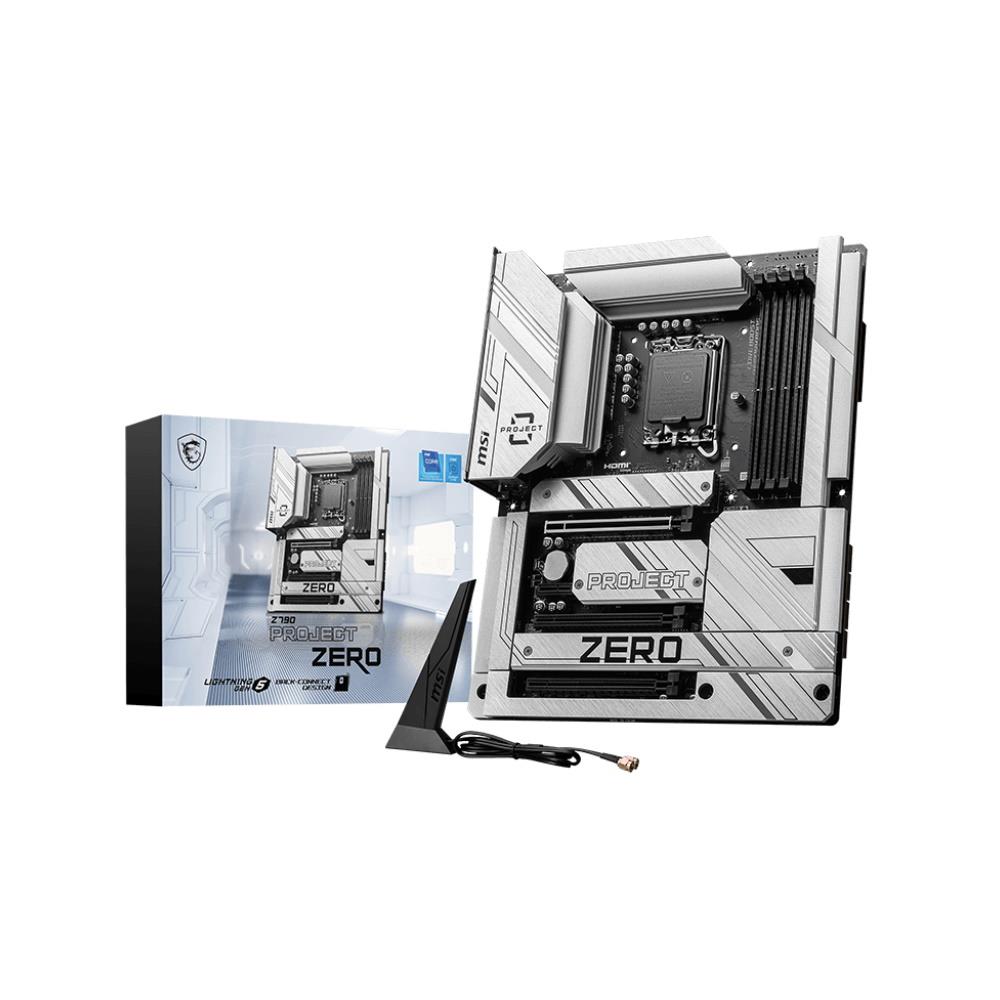

MSI Z790 PROJECT ZERO (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

Z790 PROJECT ZERO

EAN:

4711377154024

UPC:

824142342275

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel Z790

CPU Interface:

Socket 1700

CPU Support:

https://msi.com/Motherboard/Z790-PROJECT-ZERO/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7200+ (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

6

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 2 x PCIe Gen 4.0 x4
• 2 x PCIe Gen 4.0 x4/SATA

LAN Speed:

Intel 2.5Gbps LAN

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot.
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps.
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be.

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Performance Audio

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

1

Back USB 20Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

6

Back Other Port(s):

Wi-Fi / Bluetooth Antenna

Back Button(s):

1 x Flash Bios

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

4

USB 10Gbps Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Dr. Debug with LED:

4 x EZ Debug LED

Internal Other Port(s):

• 1 x TBT connector
• 2 x Addressable V2 RGB LED connector
• 2 x RGB LED connector

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

28.5cm

Package Length:

35cm

Package Height:

7.7cm

Gross Weight:

2.33Kg

Special Features:

• Support Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket.
• Supports DDR5 Memory, up to 7200+(OC) MHz.
• Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
• Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2.
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works.
• Audio Boost: Reward your ears with studio grade sound.
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.

Package Contents:

• Motherboard
• Quick Installation Guide
• 2 x SATA Cables
• EZ M.2 Clips
• Support Disk
• Cable Sticker
• Wi-Fi Antenna
