Product Name:

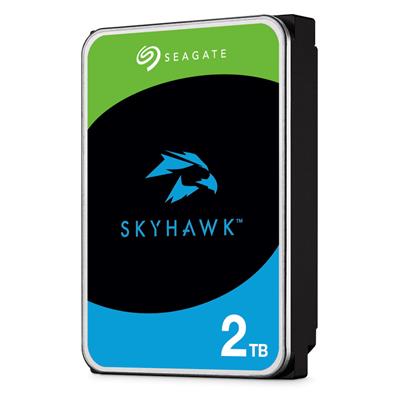

Seagate 2TB SkyHawk Surveillance +Rescue 3.5" Re-Certified Hard Drive ST2000VX017 (SATA 6Gb/s/256MB)

Web Address:

www.seagate.com

Model Number:

ST2000VX017-R

Package Type:

Re-Certified

Warranty:

1 Year

Series:

SkyHawk +Rescue

Capacity:

2TB

Interface:

S-ATA 6Gb/s

Buffer Size:

256MB

Operating Shock:

2ms 80G

Non-operating Shock:

2ms 350G

Temperature Operating:

0°C to 65°C

M.T.B.F.:

1,000,000 Hours

Product Width:

101.6mm

Product Length:

146.99mm

Product Height:

26.1mm

Package Width:

10.2cm

Package Length:

14.8cm

Package Height:

2.7cm

Gross Weight:

0.63Kg

Special Features:

• 1M hour MTBF - designed for high write duty cycle across SkyHawk.
• ATA AV Command support - streaming video command support across SkyHawk.
• Best-in-class acoustic performance means virtually silent operation.
• Built-in error recovery for non-stop video streaming.
• Compliant with RoHS requirements in China and Europe.
• Full-track multiple-sector transfer capability without local processor intervention.
• Idle3 power mode support.
• Low activity power.
• Low-RPM spindle speed.
• Native Command Queuing with command ordering to increase performance in demanding applications.
• Performance-tuned for seamless video applications.
• Reliability for 24×7 video surveillance applications.
• Rotational Vibration - mitigation of system level rotational vibration inside SkyHawk.
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• State-of-the-art cache and on-the-fly error-correction algorithms.
• Streaming video optimization - consistent command completion times and ERC support across SkyHawk.
• Support for S.M.A.R.T. drive monitoring and reporting.
• Supports 8+ drive bays.
• Supports ATA8 streaming commands.
• Supports latching SATA cables and connectors.
• Supports up to 64 HD cameras for recording and playback.
• Thermal monitoring and reporting for 24×7 operations.
• Transient power on management - <=1.8A spin-up current.
• Workload ratings of 180TB/year.
• Worldwide Name (WWN) capability uniquely identifies the drive.

Package Contents:

Hard Drive

Keywords:

• Hard Drive
• 2TB
• SATA
• +Rescue
• 256MB
• SMART
