Product Name:

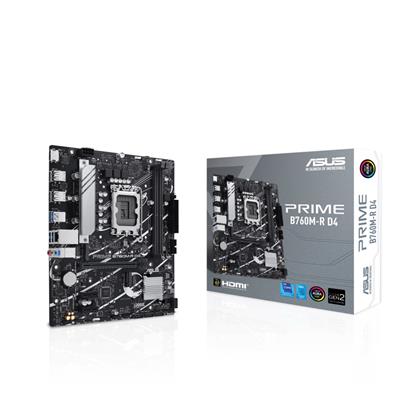

ASUS PRIME B760M-R D4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRIME B760M-R D4

EAN:

4711387423769

UPC:

197105423763

Package Type:

Retail

Warranty:

3 Years

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS

Chipset:

Intel B760

CPU Interface:

Socket 1700

CPU Support:

https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-r-d4/helpdesk_qvl_cpu?model2Name=PRIME-B760M-R-D4

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 5333 (O.C.)

Max. Memory Support:

64GB

PCI Express 4.0 x16:

1

PCI Express 4.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

On-Board LAN:

1 x Realtek 2.5Gb Ethernet

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

4

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

3 x Addressable Gen 2 headers

Form Factor:

Micro ATX

Product Width:

211mm

Product Length:

244mm

Package Width:

26.3cm

Package Length:

27.3cm

Package Height:

5.1cm

Gross Weight:

0.89Kg

Special Features:

• Intel LGA 1700 Socket: Ready for 14th,13th and 12th Gen Intel processors.
• Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 5Gbps support.
• Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares.
• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O shield
• 2 x M.2 anchors
• 1 x Quick start guide
