Product Name:

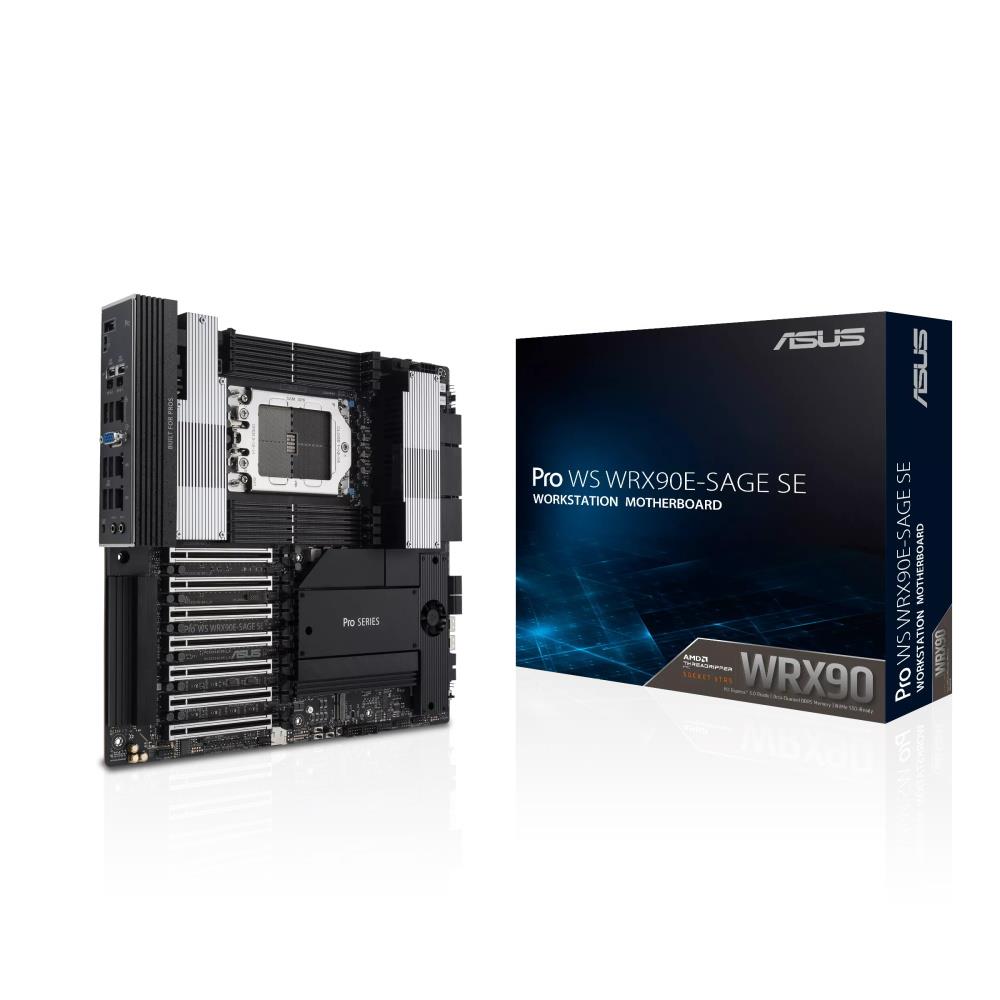

ASUS Pro WS WRX90E-SAGE SE (Socket sTR5/WRX90/DDR5/S-ATA 6Gb/s/EEB)

Web Address:

www.asus.com

Model Number:

PRO WS WRX90E-SAGE SE

EAN:

4711387441145

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

AMD WRX90

CPU Interface:

Socket sTR5

CPU Support:

https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-wrx90e-sage-se/helpdesk_qvl_cpu?model2Name=Pro-WS-WRX90E-SAGE-SE

RAM Technology:

DDR5 (8 Channel)

RAM Slots:

8 x 288-pin

PCI Express 5.0 x16:

7

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

SAS Port(s):

2 x SlimSAS

M.2 Socket(s):

4 x PCIe Gen 5.0 x4

On-Board LAN:

1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)1 x Intel dual 10Gb Ethernet

On-Board Audio:

Realtek ALC1220P Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

1

Back USB 10Gbps Port(s) Type-A:

6

Back USB 40Gbps Port(s) Type-C:

2

Back Mini DisplayPort(s):

2

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back Button(s):

1 x BIOS FlashBack1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

2 x 8-pin

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 20Gbps Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

2 x 8-pin PCIe to CPU Power Connectors7 x ProbeIt Measurement points1 x Thermal Sensor Header

Internal Button(s):

1 x FlexKey1 x ReTry1 x RSVD Switch1 x Slow Mode Switch1 x Safe Boot1 x Start

Form Factor:

EEB

Product Width:

305mm

Product Length:

330mm

Package Width:

36cm

Package Length:

37.5cm

Package Height:

8cm

Gross Weight:

4.06Kg

Special Features:

AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen Threadripper PRO 7000 WX-Series Processors.Ultrafast connectivity: Seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4 40Gbps Type-C and SlimSAS NVMe support.CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Centre Express software for real-time monitoring and management.Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Package Contents:

Motherboard2 x PCIe 8-pin to CPU Power Cables1 x 24-pin Power Cable (Y cable)2 x Mini DisplayPort Cables4 x SATA 6Gb/s Cables1 x Thermistor Cable Pack1 x Q-Connector1 x M.2 Q-Latch Package1 x AMI License Sticker4 x M.2 Rubber Packages1 x Screw Package for M.2 Key E1 x ACC Express Activation Key Card1 x Quick Start Guide
