Product Name:

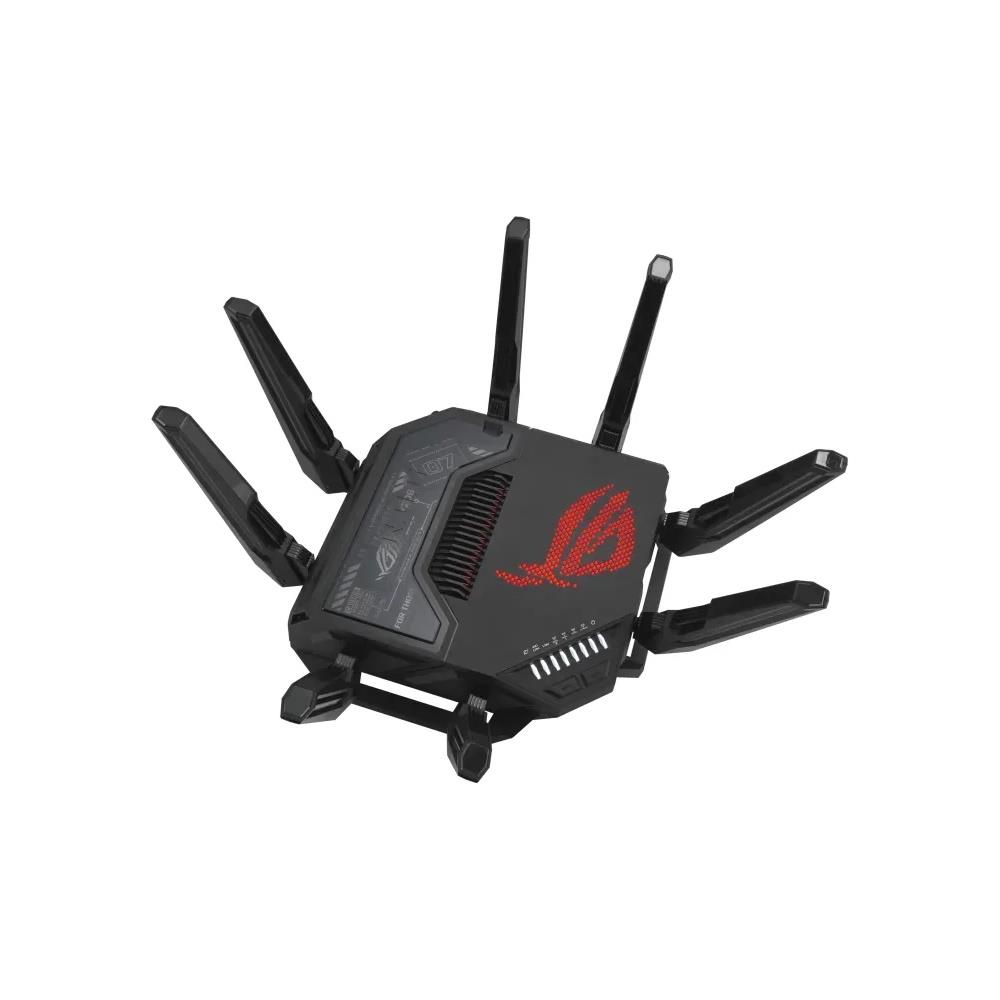

ASUS ROG Rapture GT-BE98 Wireless Router - WiFi 7 - BE25000

Web Address:

www.asus.com

Model Number:

GT-BE98

EAN:

4711387079461

UPC:

197105079465

Package Type:

Retail

Warranty:

3 Years

Device Type:

Wireless Router

Ports:

• 1 x 10Gbps for WAN/LAN
• 1 x 2.5Gbps for WAN/LAN
• 1 x 10Gbps for LAN
• 3 x 2.5Gbps for LAN
• 1 x RJ45 10/100/1000Mbps for LAN
• 1 x USB 3.2 Gen1
• 1 x USB 2.0

Standards:

• IEEE 802.11ax
• IEEE 802.11be
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IPv4
• IPv6

Transfer Rate:

• 2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
• 5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
• 5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
• 6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp

Network Architecture Types:

Infrastructure

Processor:

2.6GHz quad-core processor

Memory:

256 MB Flash and 2 GB RAM

Antenna Type:

8 x External

Frequency Range:

• 2.4GHz 4x4
• 5GHz-1 4x4
• 5GHz-2 4x4
• 6GHz 4x4

Security:

• WiFi Encryption: WPA/WPA2/WPA3 Personal / WPA/WPA2/WPA3 Enterprise / Open System and OWE
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall:
• Maximum Firewall Keyword Filter: 64
• Maximum Firewall Network Service Filter: 32
• Maximum Firewall URL Filter: 64

Management:

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update

VPN Support:

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

LED indicators:

• 1 x WAN(Internet)
• 1 x 10G LAN
• 1 x 1G/2.5G LAN
• 1 x 6GHz
• 1 x 5GHz-1
• 1 x 5GHz-2
• 1 x 2.4GHz
• 1 x Power

Button:

• WPS
• Reset
• Power Switch
• LED control

Input Power:

• AC Input: 110V-240V(50-60Hz)
• DC Output : 19.5V with max. 3.33A current

Product Width:

350.41mm

Product Length:

350.41mm

Product Height:

220.6mm

Product Weight:

2000g

Package Width:

38.2cm

Package Length:

38.2cm

Package Height:

14cm

Gross Weight:

4.32Kg

Special Features:

• Beyond-fast WiFi 7 (802.11be) with new 320MHz channels in the 6 GHz band and 4096-QAM significantly increases network capacity and throughput, with speeds of up to 25 Gbps.
• Multi-link Operation links to multiple bands at the same time to ensure stable internet connections and efficient data transfers.
• Cutting-edge external dual-feeding antennas boost coverage by providing high efficiency and significantly enhanced signal strength.
• Maximized wired connectivity and flexibility with dual 10G ports and quad 2.5G ports, paving the way for most bandwidth-intensive games.
• Subscription-free network security?with commercial-grade AiProtection Pro powered by Trend Micro, plus a one-tap security scan and Safe Browsing.
• Comprehensive VPN features including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi.
• AiMesh extendable routers enable whole home seamless roaming with rich, advanced features.

Package Contents:

• GT-BE98 quad-band gaming router
• RJ-45 cable
• UK Power Adapter
• Quick Start Guide
• Warranty card

Keywords:

• Router
• WiFi 7
• BE25000
