Product Name:

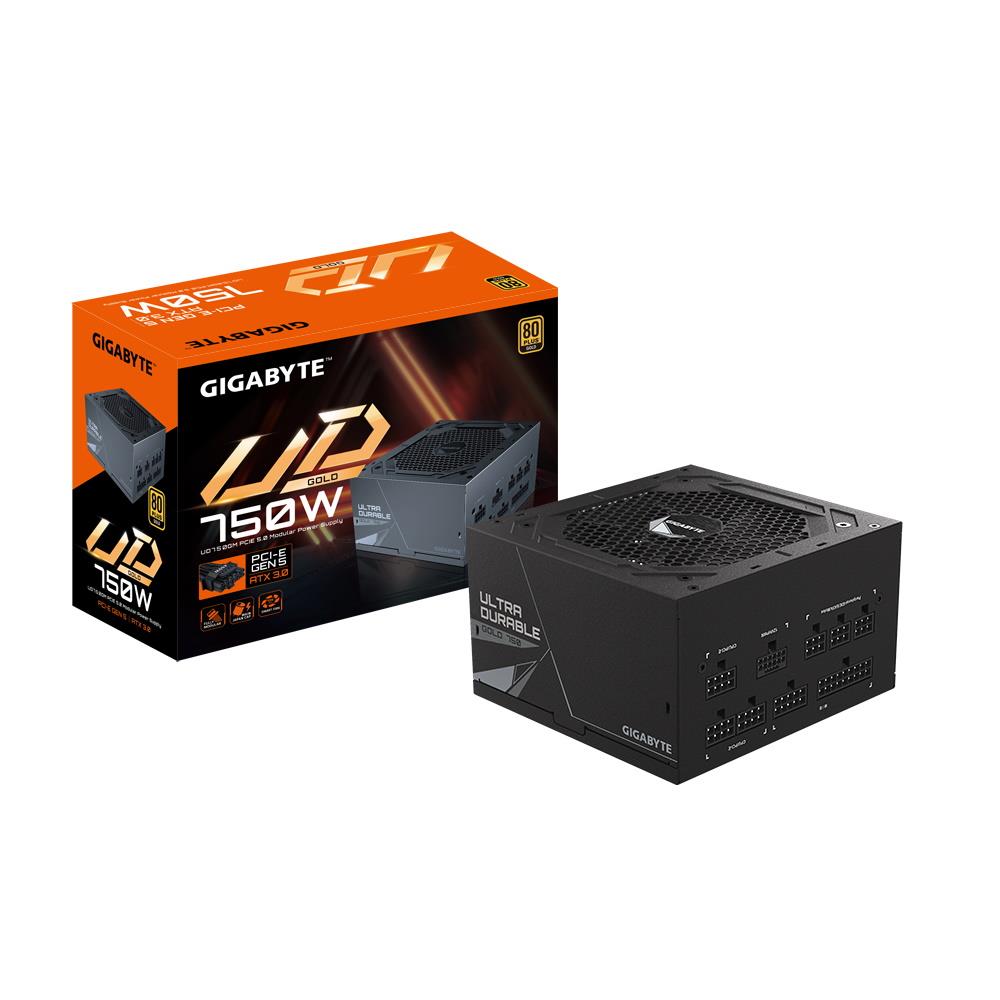

Gigabyte 750W ATX 12V v3.00 Fully Modular Power Supply - GP-UD750GM PG5 - 80 PLUS Gold

Web Address:

www.gigabyte.com

Model Number:

GP-UD750GM PG5

EAN:

4719331553647

UPC:

810075657869

Package Type:

Retail

Warranty:

5 Years

Type:

ATX 12V v3.0

Maximum Power:

750W

20+4-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

4

12+4-pin PCI-E:

1

SATA Connector(s):

8

Peripheral Connector(s):

3

Floppy Connector(s):

1

PFC:

Active

AC Input:

100-240VAC

Hold-up Time:

16ms

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

M.T.B.F.:

100,000 hours

Colour:

Black

Cable Type:

Fully Modular

Cable Sleeving:

• Flat
• All black

Cooling System:

1 x 120mm (HYB)

Product Width:

140mm

Product Length:

150mm

Product Height:

86mm

Package Width:

20.5cm

Package Length:

25.5cm

Package Height:

12cm

Gross Weight:

2.63Kg

Special Features:

• Ultra Durable.
• Main Japanese capacitors.
• Enhanced thermal solution.
• 120mm smart hydraulic bearing (HYB) fan.
• OVP/OPP/SCP/UVP/OCP/OTP protection.
• Support PCIe Gen 5.0 graphics cards.
• Support Intel ATX 3.0 standard.
• 80 PLUS Gold certified.
• Fully modular design.
• Compact design.

Package Contents:

• Power Supply
• UK Power Cord
• Mounting Screws
• Cable Ties

Keywords:

• PSU
• Power Supply
• v3.0
• Gold
• Black
