Product Name:

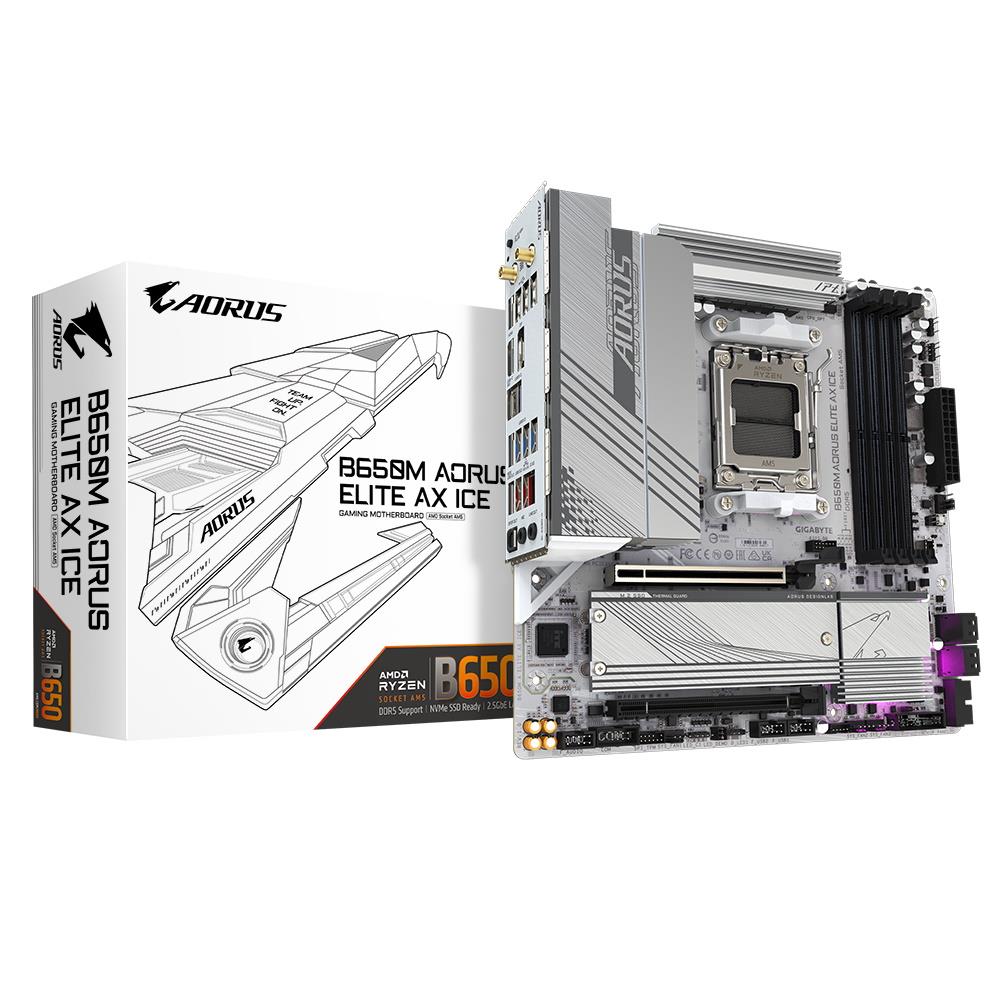

Aorus B650 AORUS ELITE AX ICE (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B650M AORUS ELITE AX ICE

EAN:

4719331859336

UPC:

889523040368

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B650

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/B650M-AORUS-ELITE-AX-ICE/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000 (O.C.)

Max. Memory Support:

192GB

PCI Express 4.0 x16:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

On-Board LAN:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.3

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

5

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

2 x SMA antenna connectors

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2x2:

1

Thunderbolt AIC Connector(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 2 x Addressable LED Strip Headers
• 2 x RGB LED Strip Headers
• 1 x CPU Cooler LED Strip/RGB LED Strip Header

Internal Button(s):

1 x Reset

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27cm

Package Length:

28cm

Package Height:

7cm

Gross Weight:

1.73Kg

Special Features:

• AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.
• Unparalleled Performance: Twin 12+2+2 Phases Digital VRM Solution.
• Dual Channel DDR5: 4 x DIMMs with AMD EXPO and Intel XMP Memory Module Support.
• Superfast Storage: 1 x PCIe 5.0 x4 and 1x PCIe 4.0 x4 M.2 Connector.
• Advanced Thermal Design and M.2 Thermal Guard: To Ensure VRM Power Stability and 25110 M.2 SSD Performance.
• EZ-Latch: PCIe x16 Slot and M.2 Connectors with Quick Release and Screwless Design.
• Fast Networks: 2.5GbE LAN and Wi-Fi 6E.
• Extended Connectivity: HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents:

• Motherboard
• 1 x SATA Cables
• Support Disk
• Manual
